PILLAR IP
Professional-grade outdoor LED display system rated IP65. Engineered for permanent outdoor installations with ultra-high brightness and flexible maintenance access.
WHERE PILLAR IP PERFORMS
ENGINEERED FOR THE OUTDOORS
Ultra-High Brightness
5,000–6,000 cd/m² ensures vivid, readable visuals even in direct sunlight. Engineered for demanding outdoor environments.
Front & Rear Maintenance
Flexible access from both front and rear. Modules can be replaced without dismantling the entire structure, reducing downtime.
IP65 Weatherproof
Fully rated IP65 front and rear — protected against dust ingress and water jets from any direction. Built for year-round outdoor use.

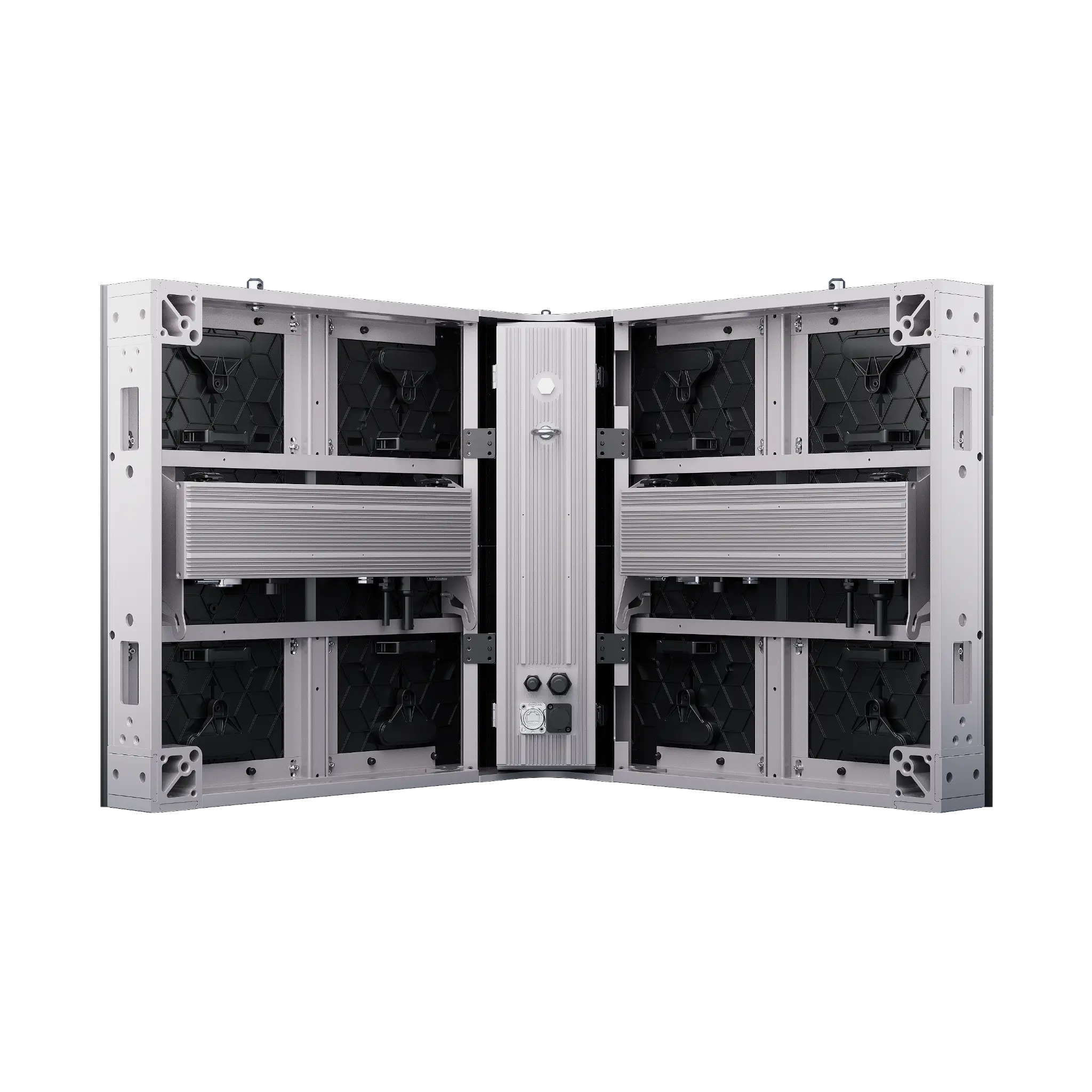

Versatile Corner Configurations
Supports 90° right-angle and curved corner cabinets. One product family covers flat, corner, and creative installation layouts.
CABINET CONFIGURATIONS
Click any image to enlarge
1000×1000 + 500×1000 — Front & Rear

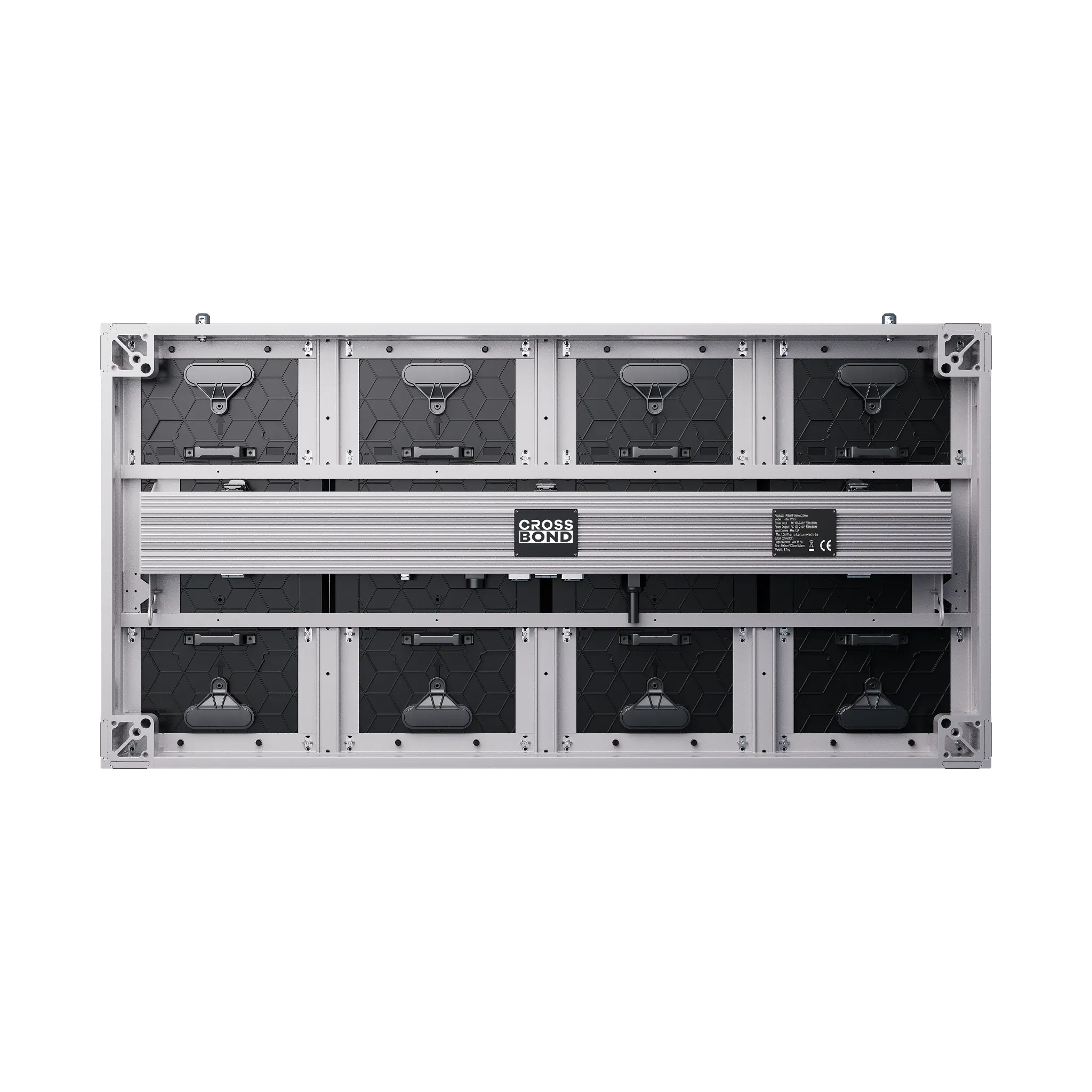

1000×500 — Rear View

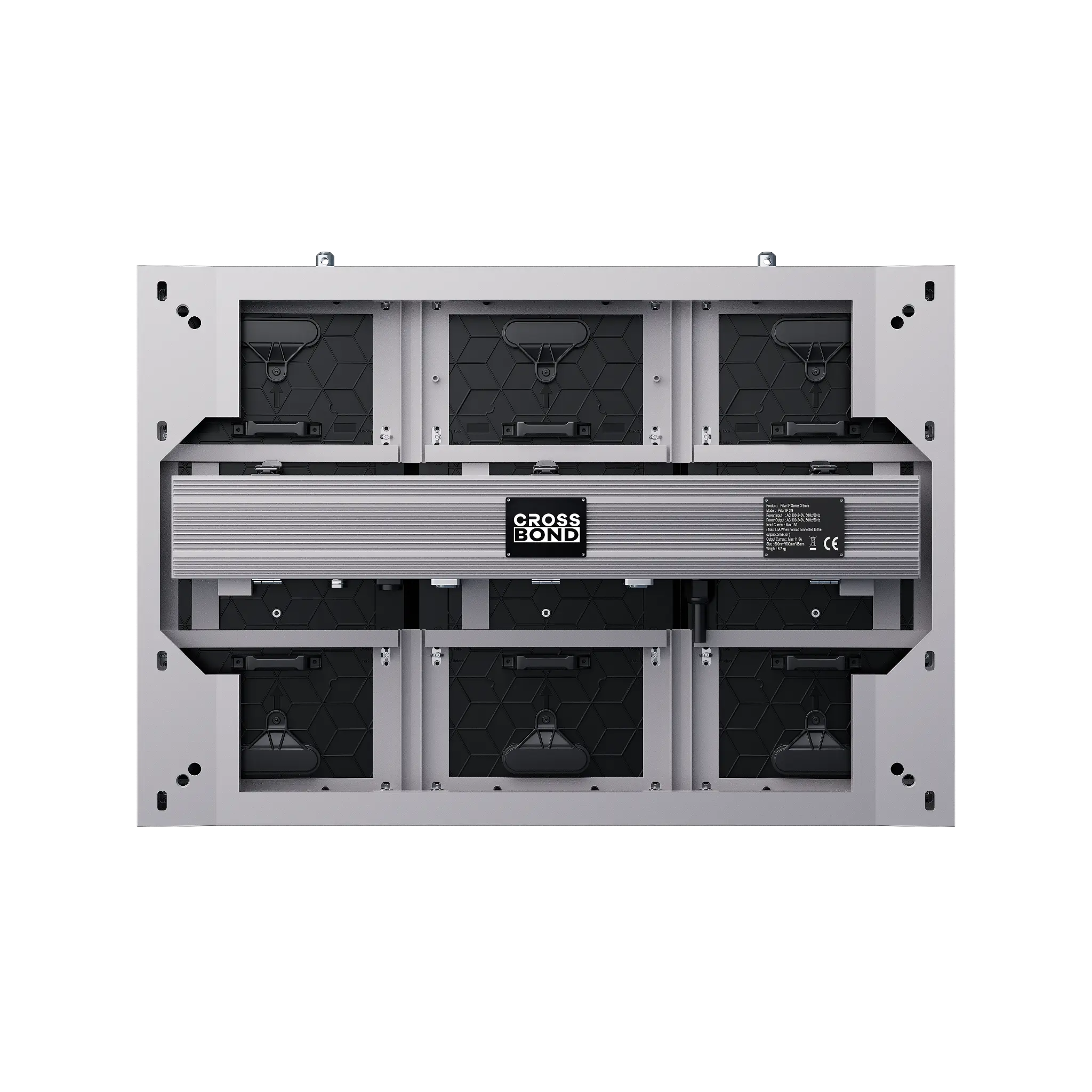

750×500 — Rear View with Trim

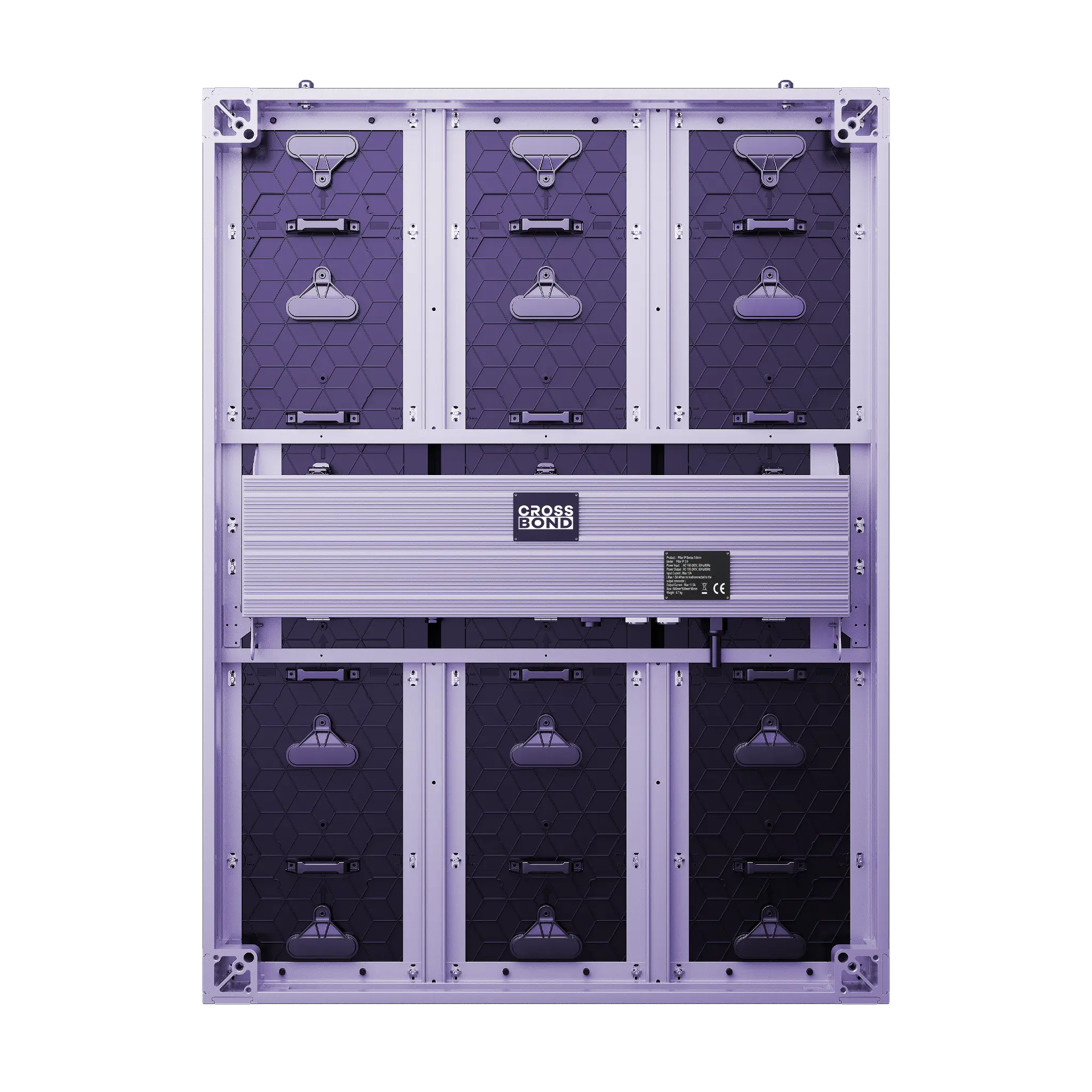

1000×750 — Rear View

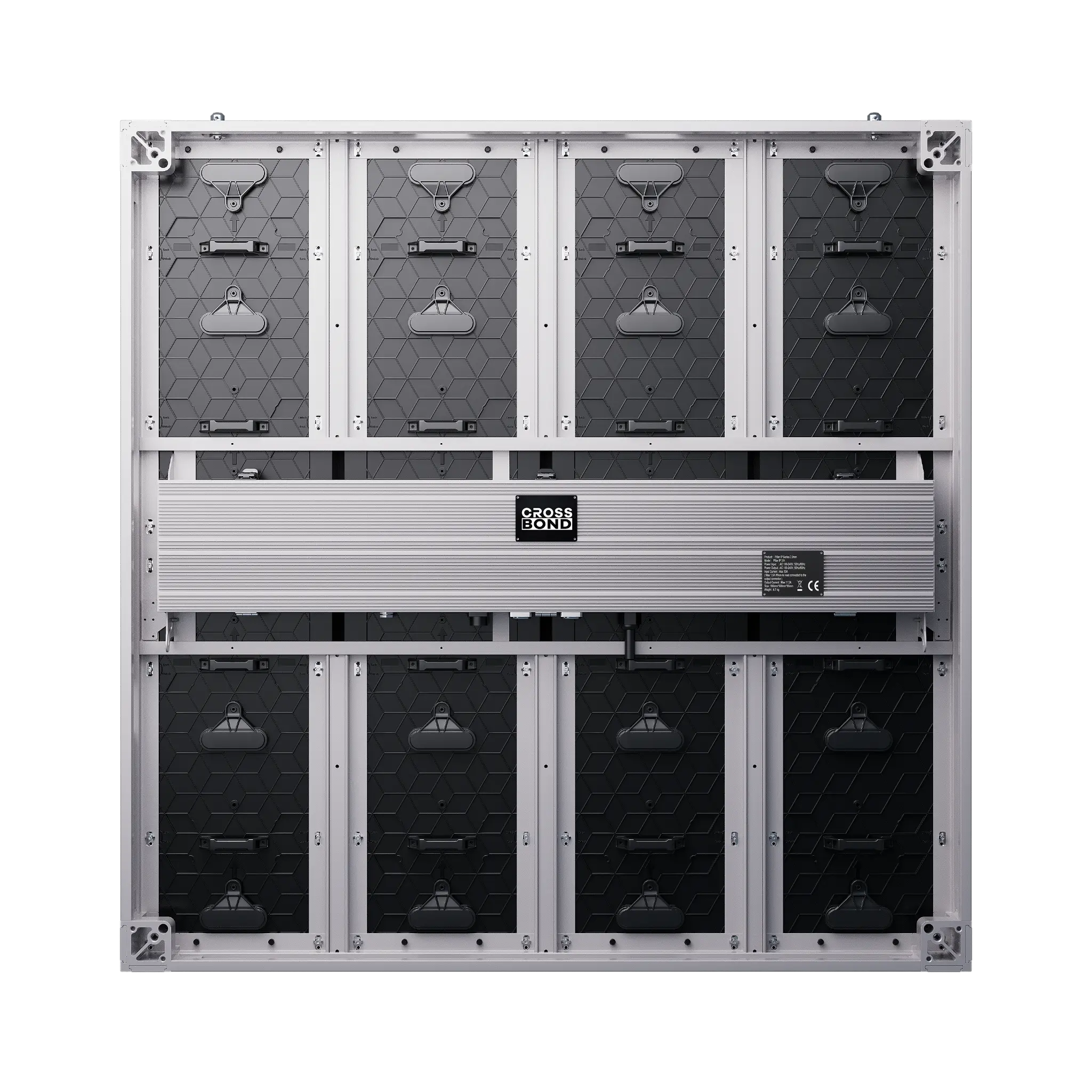

1000×1000 — Rear View

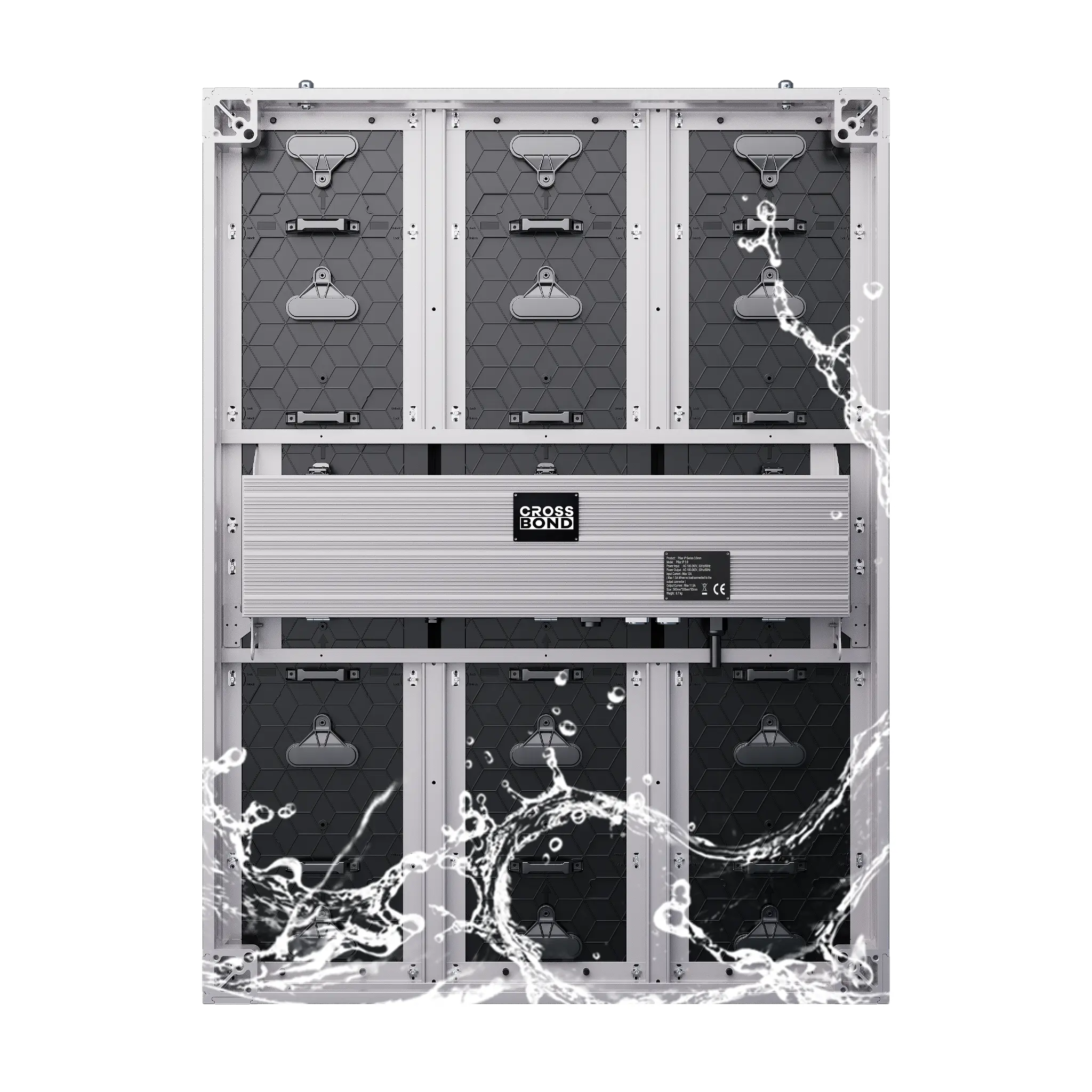

IP65 Weatherproof — Water Resistance
500×500 — Curved Corner

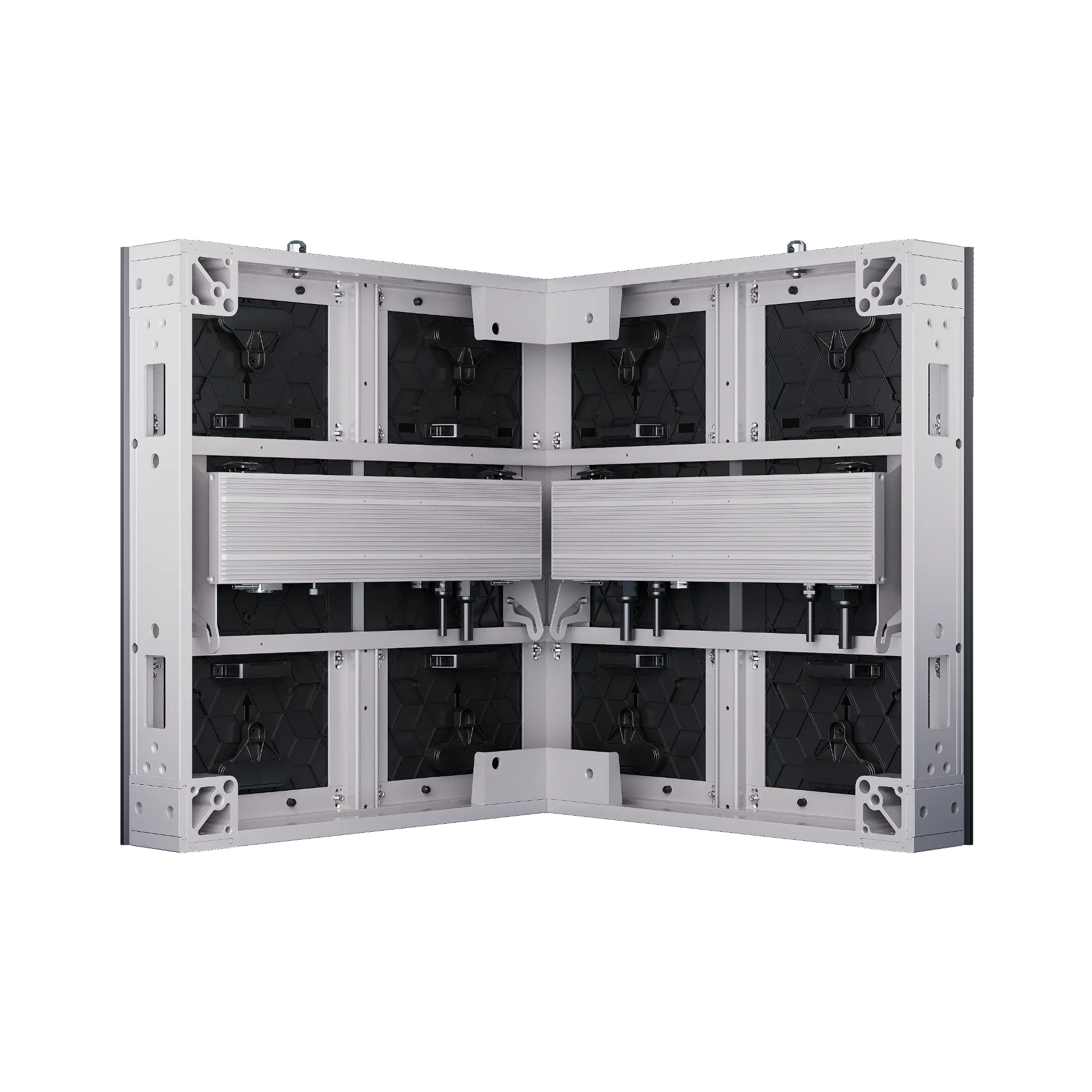

500×500 — Right Angle Corner

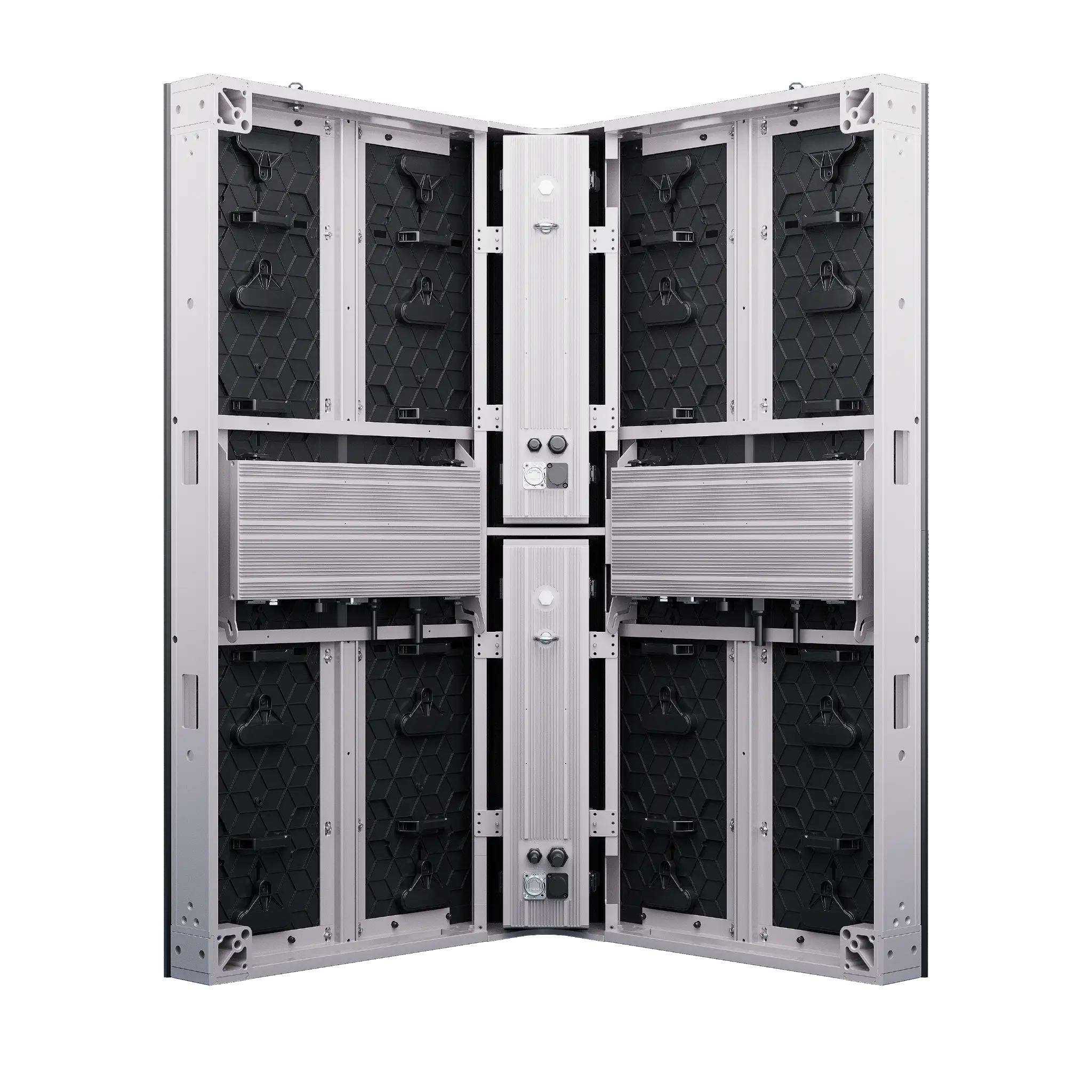

500×1000 — Curved Corner
500×500 — 90° Right Angle (3D)

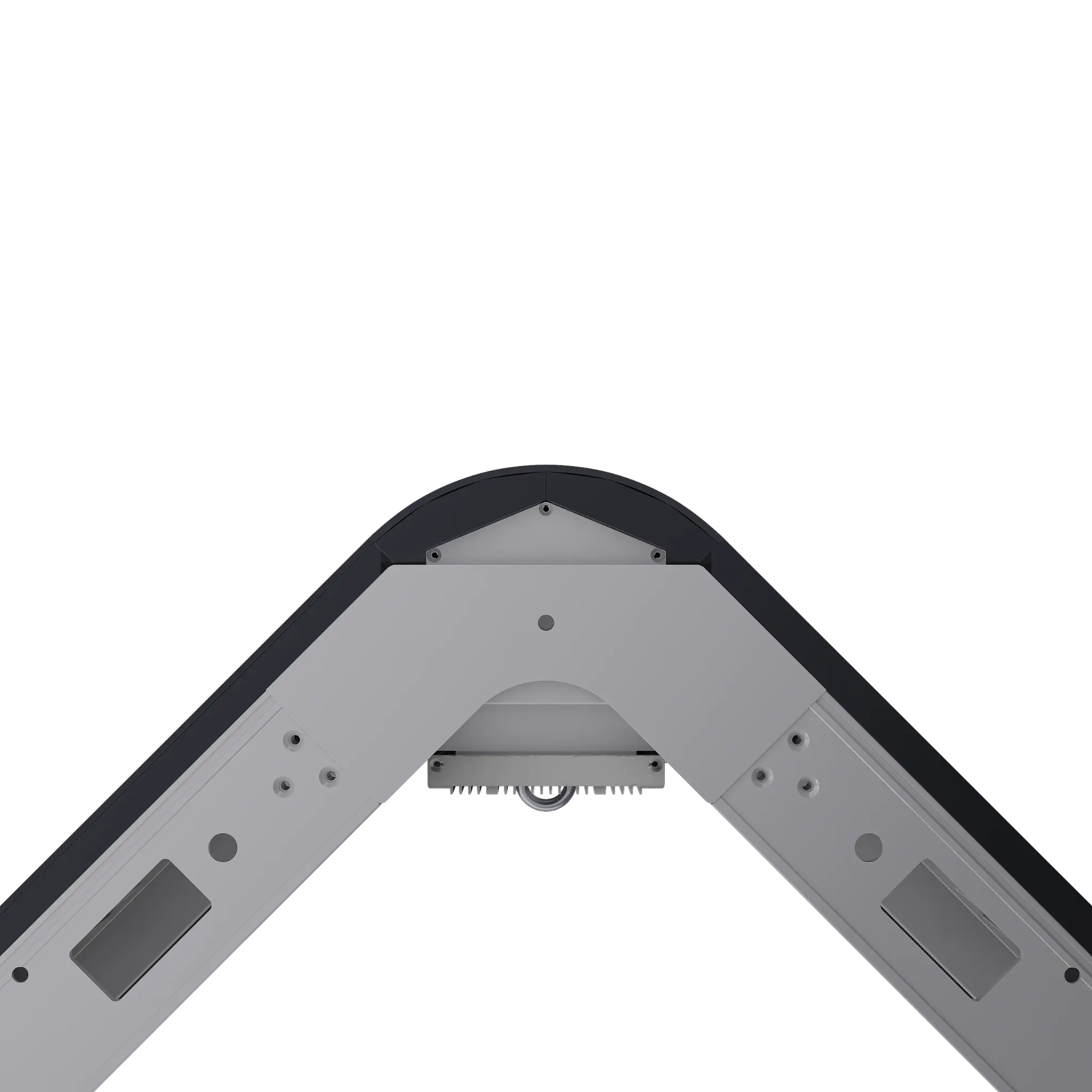

Curved Corner — Top View
PRODUCT PARAMETERS
| Parameter | P3.9 |
|---|---|
| Pixel Pitch (mm) | 3.9 |
| LED Type | SMD1921 |
| Environment | Outdoor (IP65) |
| Module Size (mm) | 250 × 500 |
| Module Resolution | 64 × 128 |
| Scanning Mode | 1/8 |
| Brightness (cd/m²) | 5,000–5,500 |
| Grayscale (bit) | ≥ 14 bit |
| Refresh Rate (Hz) | ≥ 3840 |
| Power Max/Avg (W/m²) | 720 / 210 |
| Cabinet Sizes (mm) | 1000×1000×85 | 1000×500×85 | 750×1000×85 | 750×500×85 |
| Input Voltage | AC 100–240V, 50/60 Hz |
| Viewing Angle H/V | 120° / 120° |
| Operating Temp (°C) | -20°C to +40°C |
| Operating Humidity | 10–90% RH |
| Service Life | 100,000 hours |
* Cabinet depth (85mm) may vary slightly depending on mask height selected. Specifications subject to change without notice.
AVAILABLE CABINET SIZES
Standard square format for large seamless walls
Landscape format for wide-format installations
Compact format with trim for precise sizing
Portrait format for vertical display runs
Corner Cabinet Options
500mm length — sharp 90° outer corner
500mm length — smooth curved outer corner
1000mm length — extended curved corner
