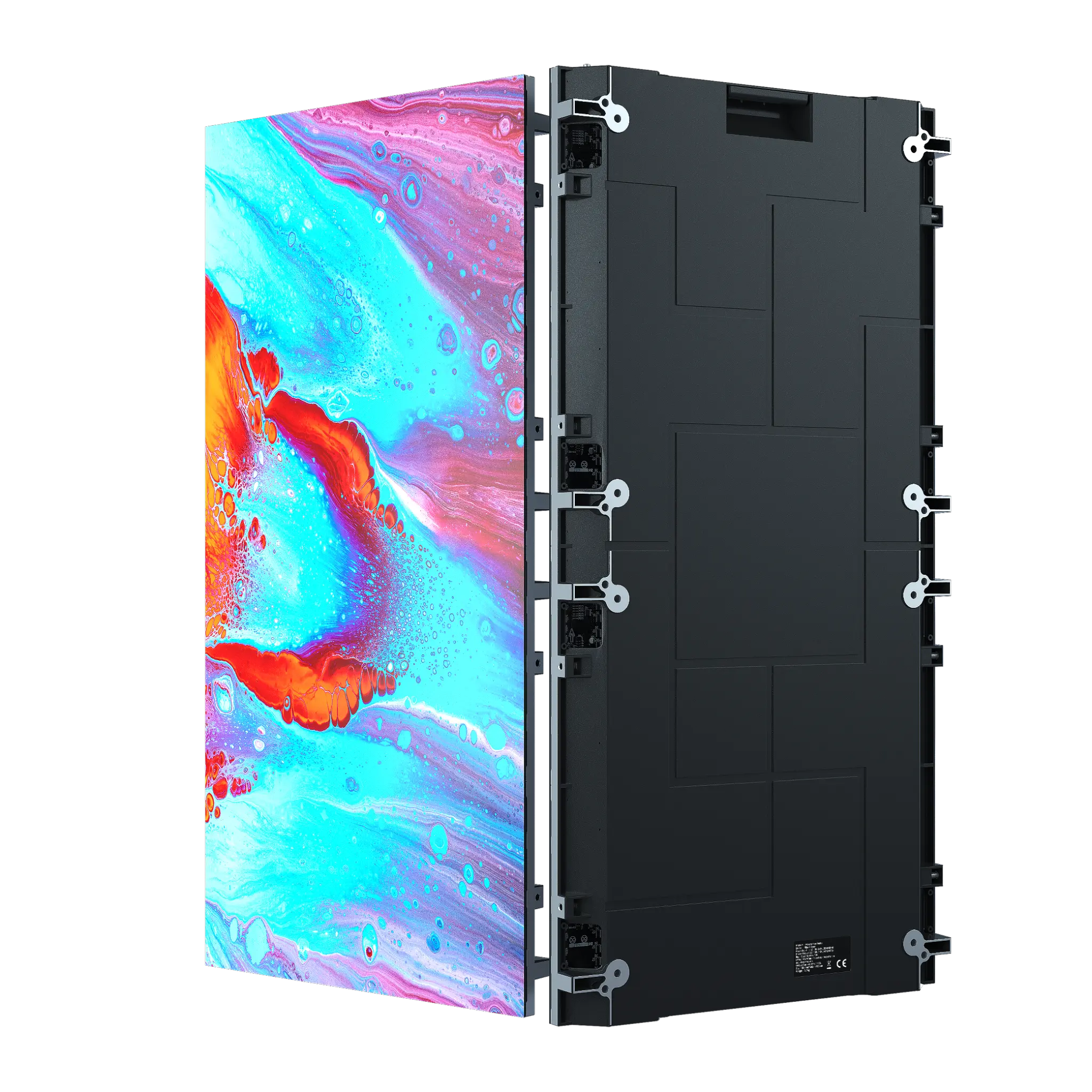

PILLAR
INDOOR
Ultra-thin fixed indoor LED display engineered for permanent installations. Exceptional grayscale precision, flexible cabinet configurations, and front & rear accessibility.

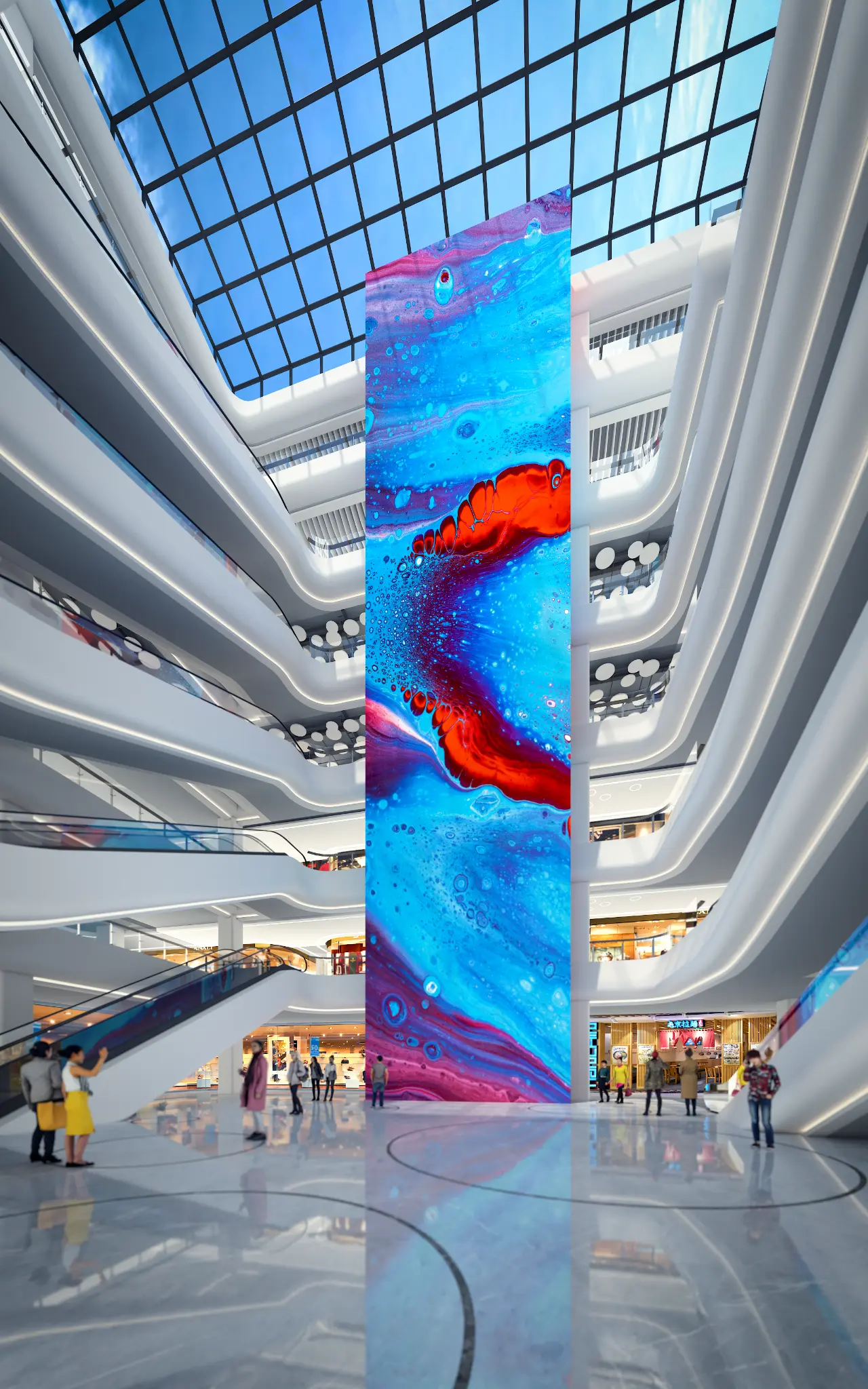

WHERE PILLAR INDOOR PERFORMS
ENGINEERED FOR PERMANENCE
High Refresh Rate
Up to 7,680 Hz refresh rate delivers flicker-free, broadcast-quality imagery — ideal for camera-facing installations.
_a716e579.webp)

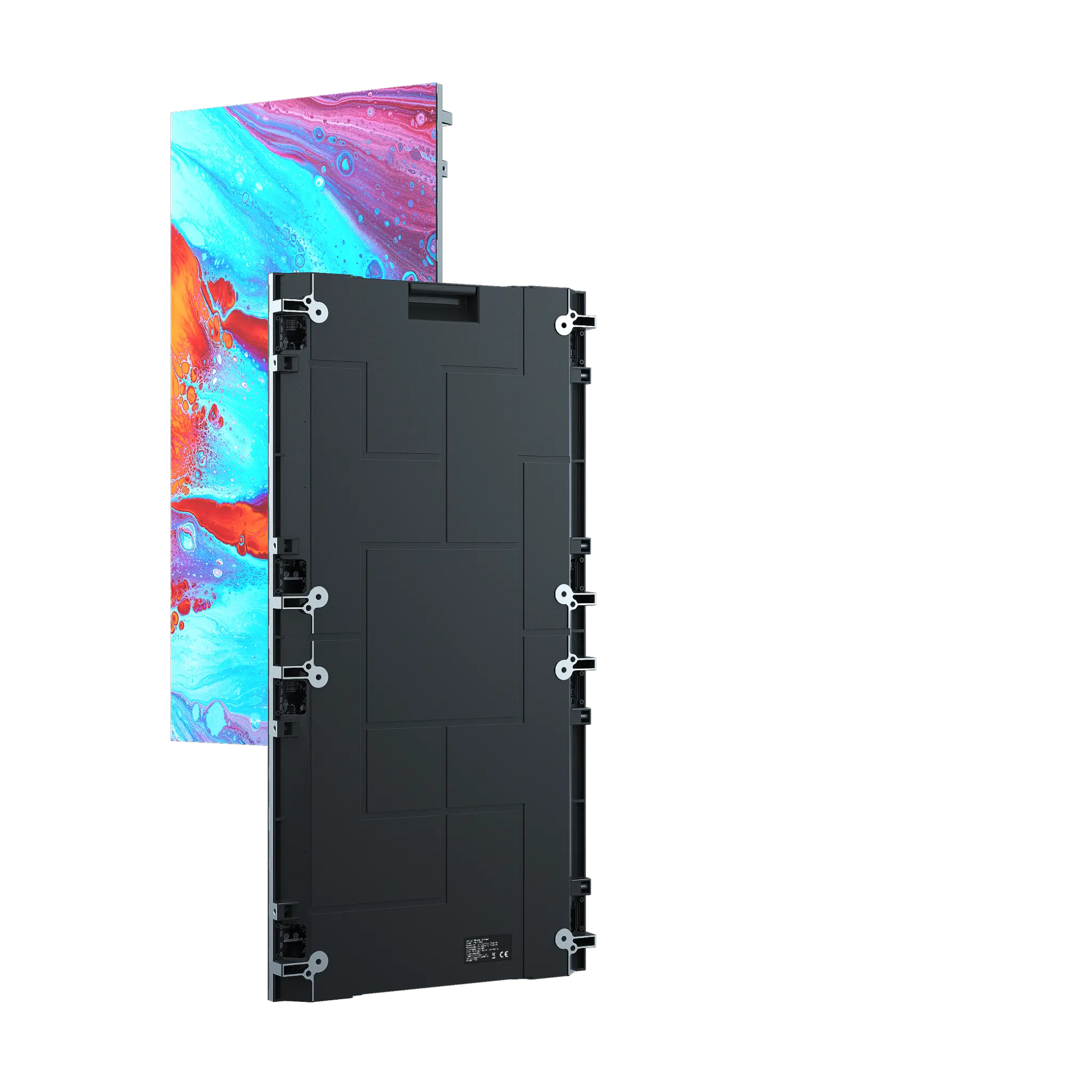

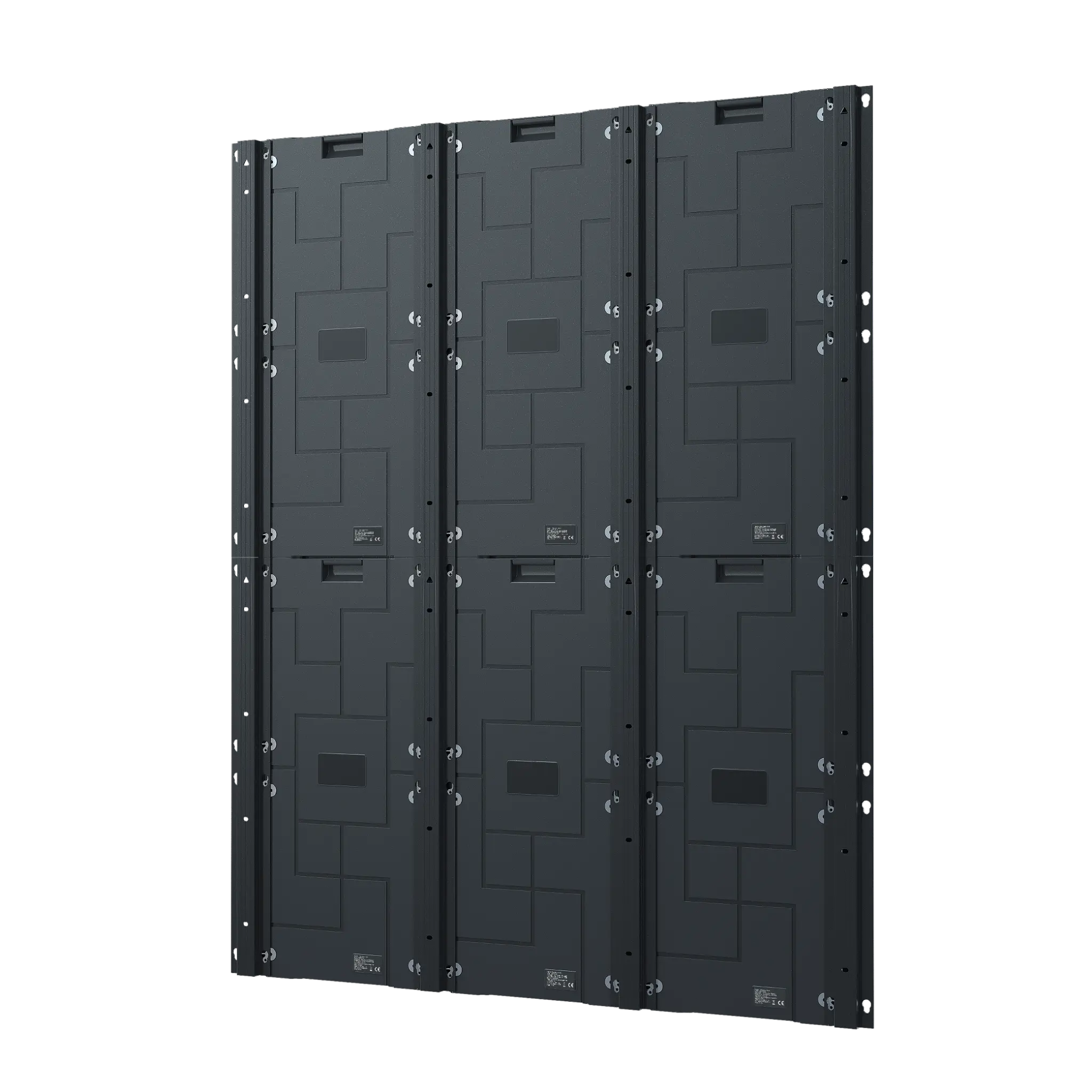

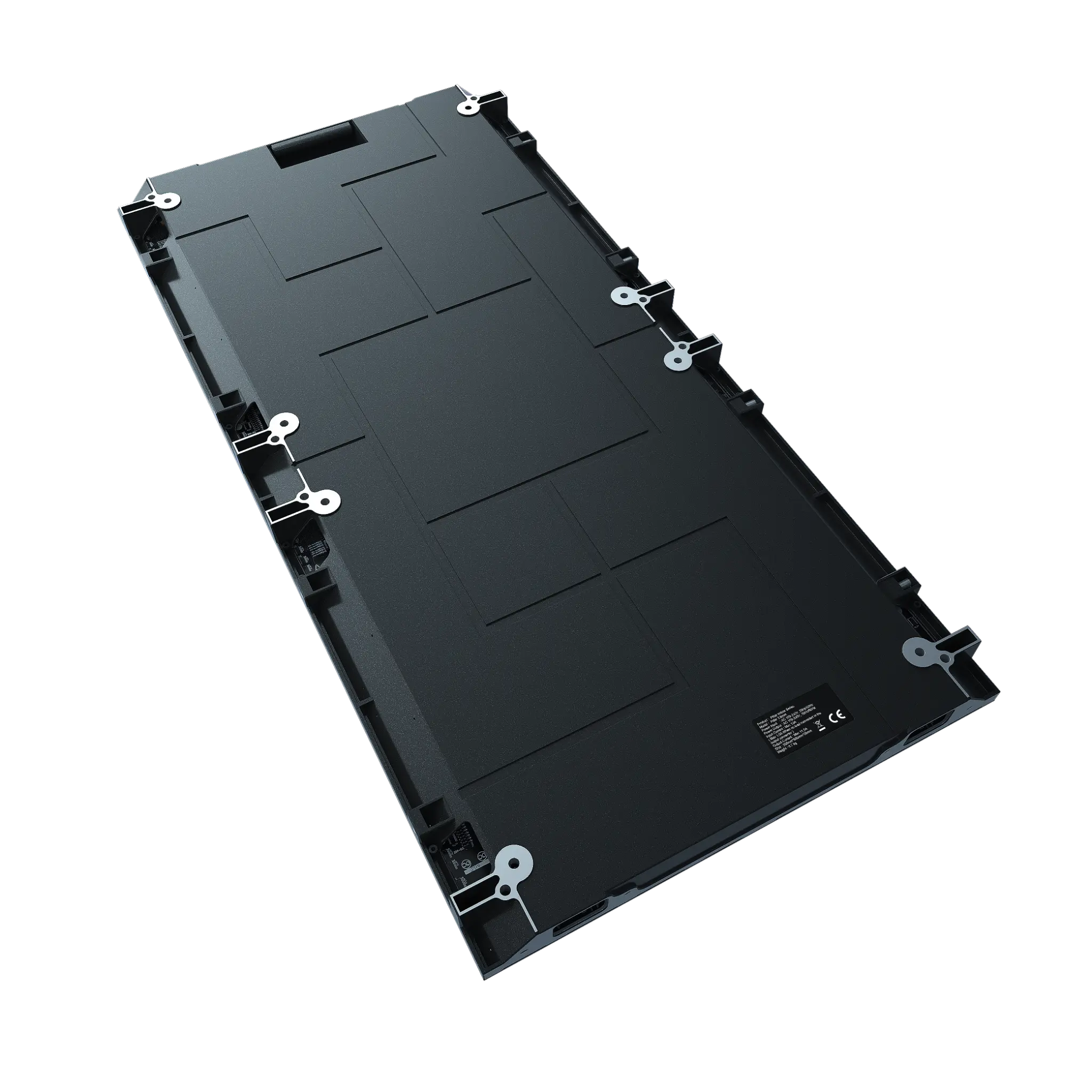

Front & Rear Maintenance
Accessible from both front and rear for fast, low-disruption servicing — critical for permanent fixed installations.
_4a59e366.webp)
High Precision Gray Scale
15-bit grayscale processing ensures smooth gradients and accurate color reproduction across all brightness levels.

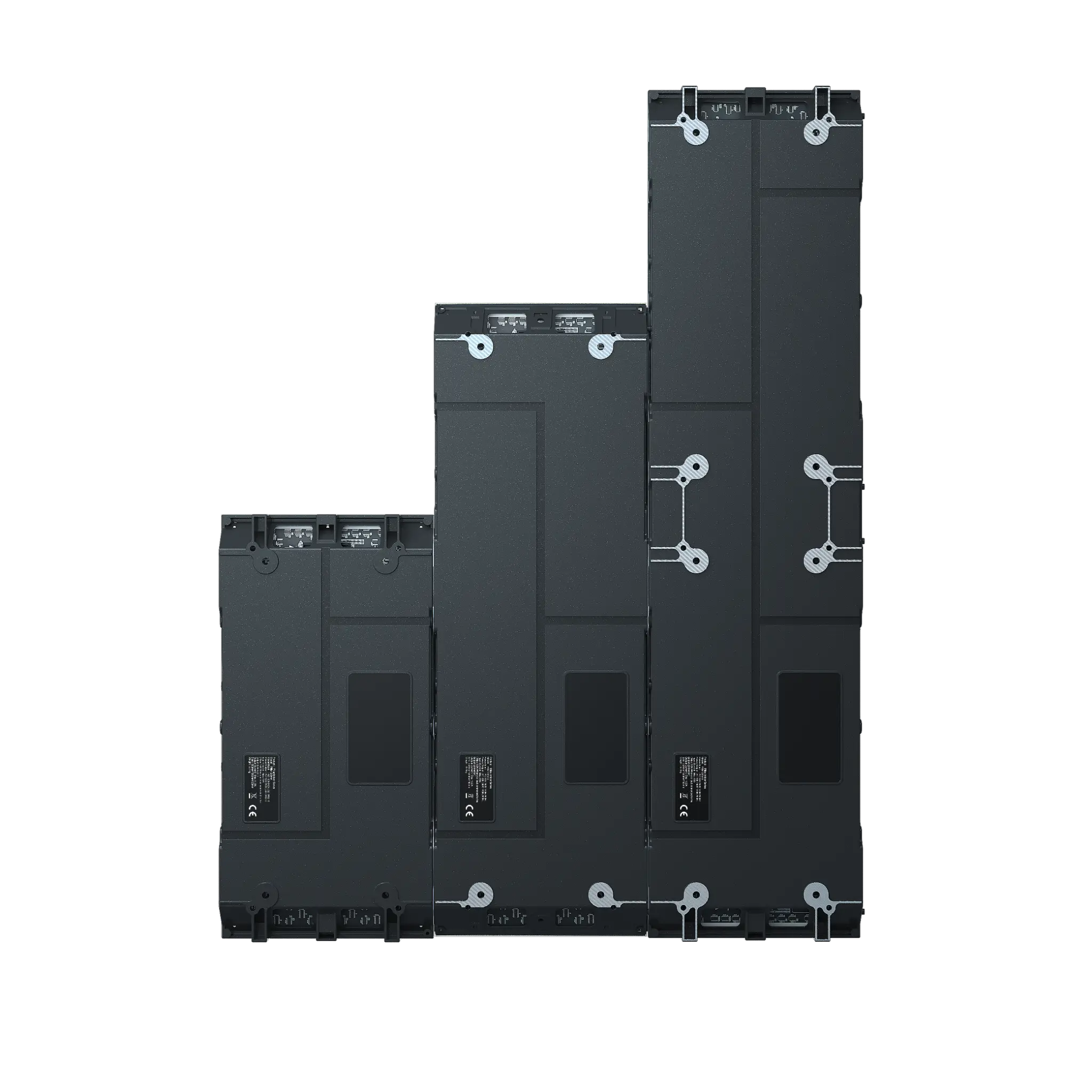

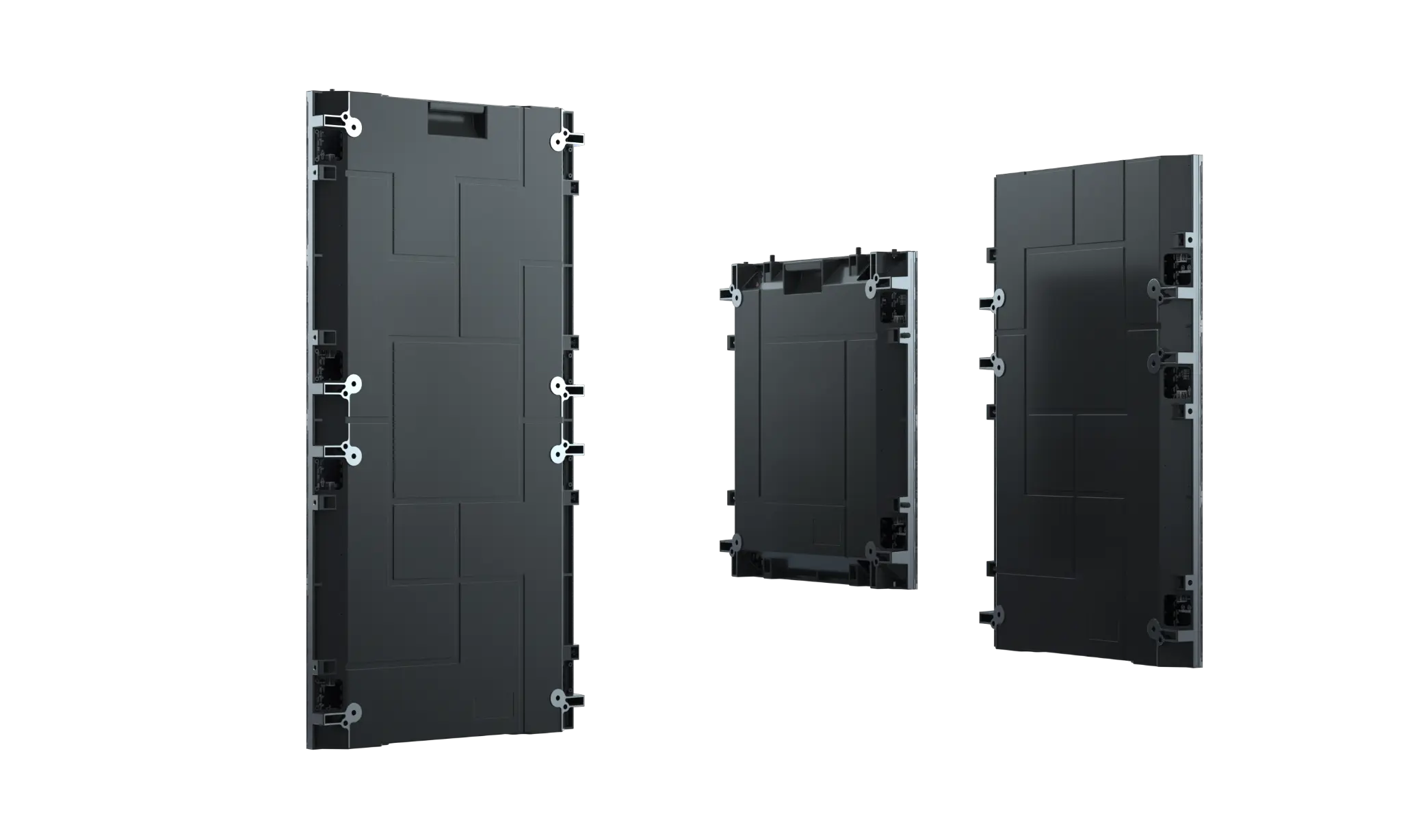

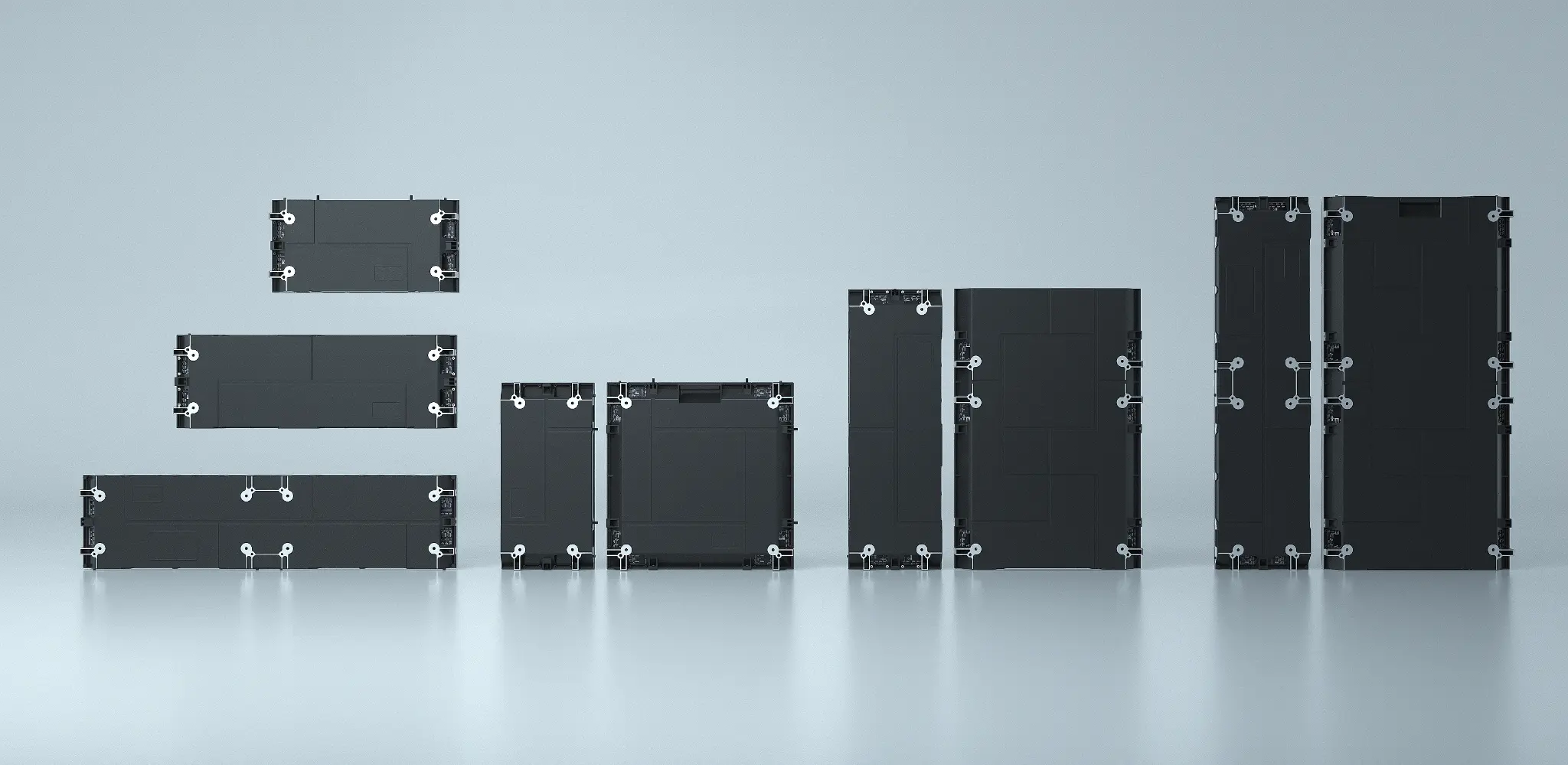

Flexible Configurations
Eight standard cabinet sizes from 250×500mm to 500×1000mm allow virtually any aspect ratio and creative shape.
PILLAR INDOOR IN DETAIL
FULL SPECIFICATIONS
| Pixel Pitch (mm) | 1.9 |
| LED Type | Black SMD1515 Copper wire |
| Environment | Indoor (IP30) |
| Module Size (mm) | 250 × 250 |
| Module Resolution | 128 × 128 |
| Cabinet Sizes (mm) | 250×500×47 / 250×1000×47 / 500×250×47 / 750×250×47 / 1000×250×47 / 500×500×47 / 500×750×47 / 500×1000×47 |
| Brightness (cd/m²) | 800 |
| Viewing Angle H/V | 140° / 140° |
| Min. Viewing Distance (m) | 1.9 |
| Gray Scale (bit) | 15 bit |
| Refresh Rate (Hz) | 7,680 |
| Power Max/Avg (W/m²) | 450 / 150 |
| Work Voltage | AC 100–240V |
| Driving Mode | 1/32 Scan / SM16380SW |
| Contrast Ratio | 4,000:1 |
| Color Temperature (K) | 5,500–9,500 (Adj.) |
| Operating Temp (°C) | 0°C to +40°C |
| Storage Temp (°C) | -20°C to +85°C |
| Operating Humidity | 10–90% RH |
| IP Rating (Front/Rear) | IP30 / IP30 |
| Maintenance | Front |
| Installation | Fixed |
| Service Life (Hours) | 100,000 |
| Certificate | CE / FCC / ETL |
Specifications are for reference only and subject to change without notice.
REQUEST THE MANUAL
Enter your name and email and we'll send the Pillar Indoor Series manual directly to your inbox.
