GLADIATOR
OUTDOOR
High-brightness, waterproof touring LED panel engineered for outdoor events and permanent installations. IP65 rated, wind-frame ready, and built to last.
WHERE GLADIATOR OUTDOOR PERFORMS
BUILT FOR THE ELEMENTS
High Brightness
4,000–4,500 cd/m² ensures vivid, readable imagery even in direct sunlight — no compromises outdoors.
Waterproof IP65 / IP55
Epoxy-encapsulated LED chips and IP65 front / IP55 rear rating deliver full protection against rain, dust, and humidity.

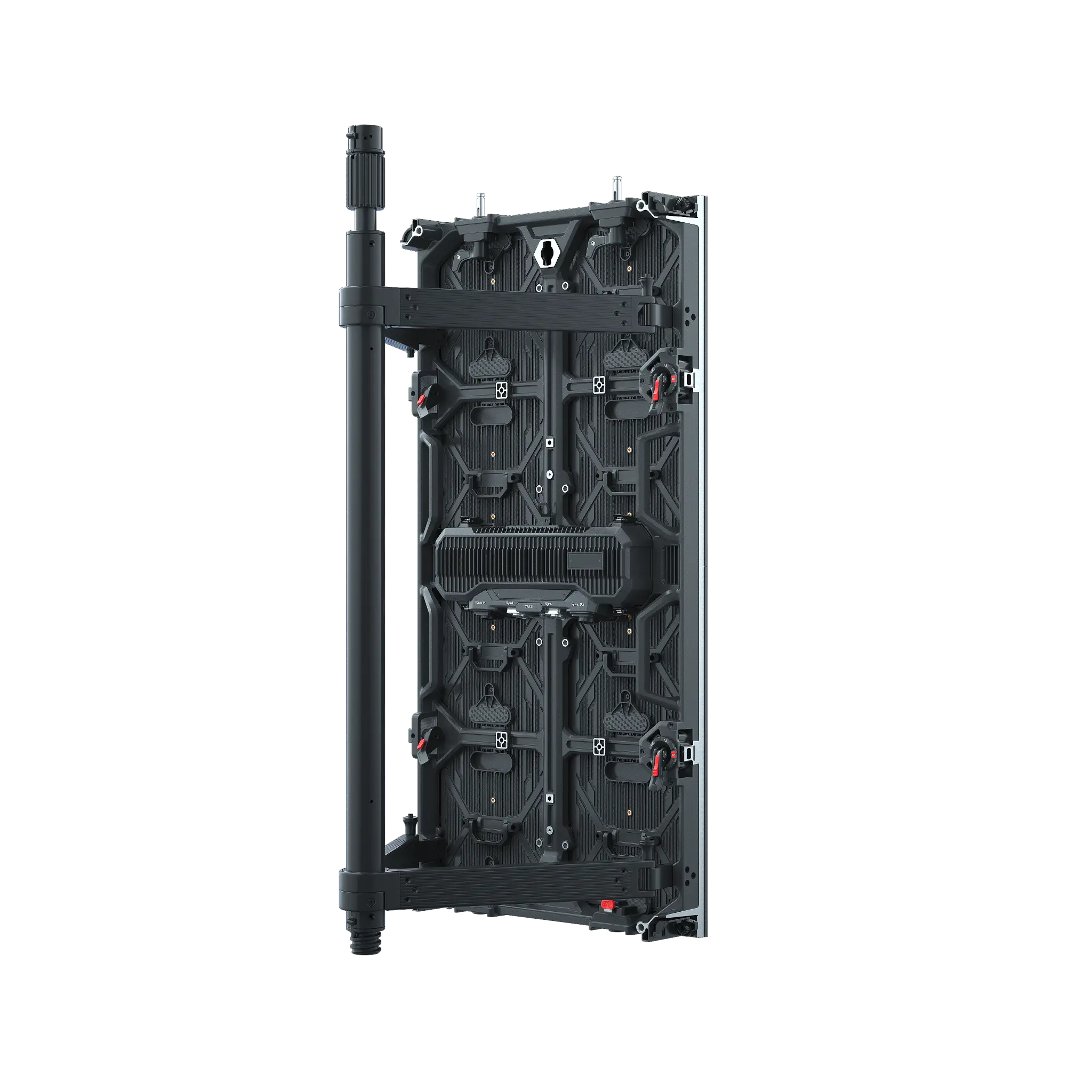

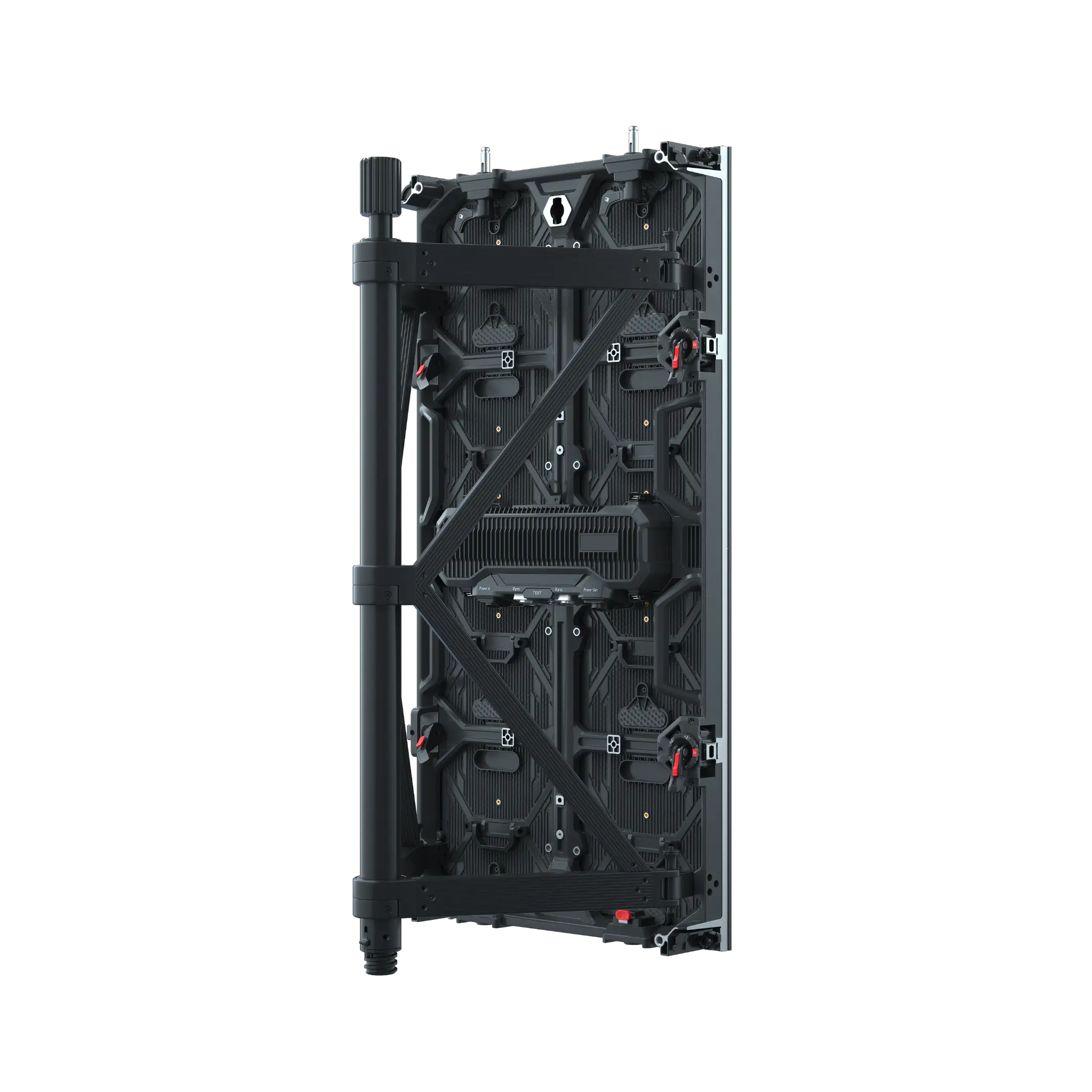

Wind Frame Available
Optional wind frame system provides structural reinforcement for high-wind outdoor installations and touring events.
Robust Structural Design
Heavy-duty module connectors, corner protection, and superior heat dissipation ensure long-term reliability in harsh conditions.
GLADIATOR OUTDOOR IN DETAIL
FULL SPECIFICATIONS — P3.9 OUTDOOR
| Pixel Pitch (mm) | 3.9 |
| LED Type | Black SMD1921 (Copper wire) — Epoxy Encapsulated |
| Environment | Outdoor |
| Module Size (mm) | 250 × 500 |
| Module Resolution | 64 × 128 |
| Cabinet Sizes (mm) | 500×500×87.5 / 500×1000×87.5 |
| Cabinet Resolution | 128×128 / 128×256 |
| Module Quantity | 2 / 4 pcs |
| Cabinet Weight | 6.5 kg / 13 kg |
| Brightness (cd/m²) | 4,000–4,500 |
| Viewing Angle H/V | 140° / 140° |
| Min. Viewing Distance (m) | 2.9 |
| Gray Scale (bit) | 16 bit |
| Refresh Rate (Hz) | 7,680–15,360 |
| Power Max/Avg (W/m²) | 700 / 235 |
| Work Voltage | AC 100–240V |
| Driving Mode | 1/8 Scan / SM16339SW |
| Contrast Ratio | 5,000:1 |
| Color Temperature (K) | 5,500–9,500 (Adj.) |
| Operating Temp (°C) | -20°C to +50°C |
| Storage Temp (°C) | -40°C to +85°C |
| IP Rating (Front/Rear) | IP65 / IP55 |
| Curved Angle (°) | ±6, ±3, 0 (optional) |
| Maintenance | Rear |
| Installation | Stacking / Hanging |
| Certificate | CE / FCC / ETL |
Specifications are for reference only and subject to change without notice.
