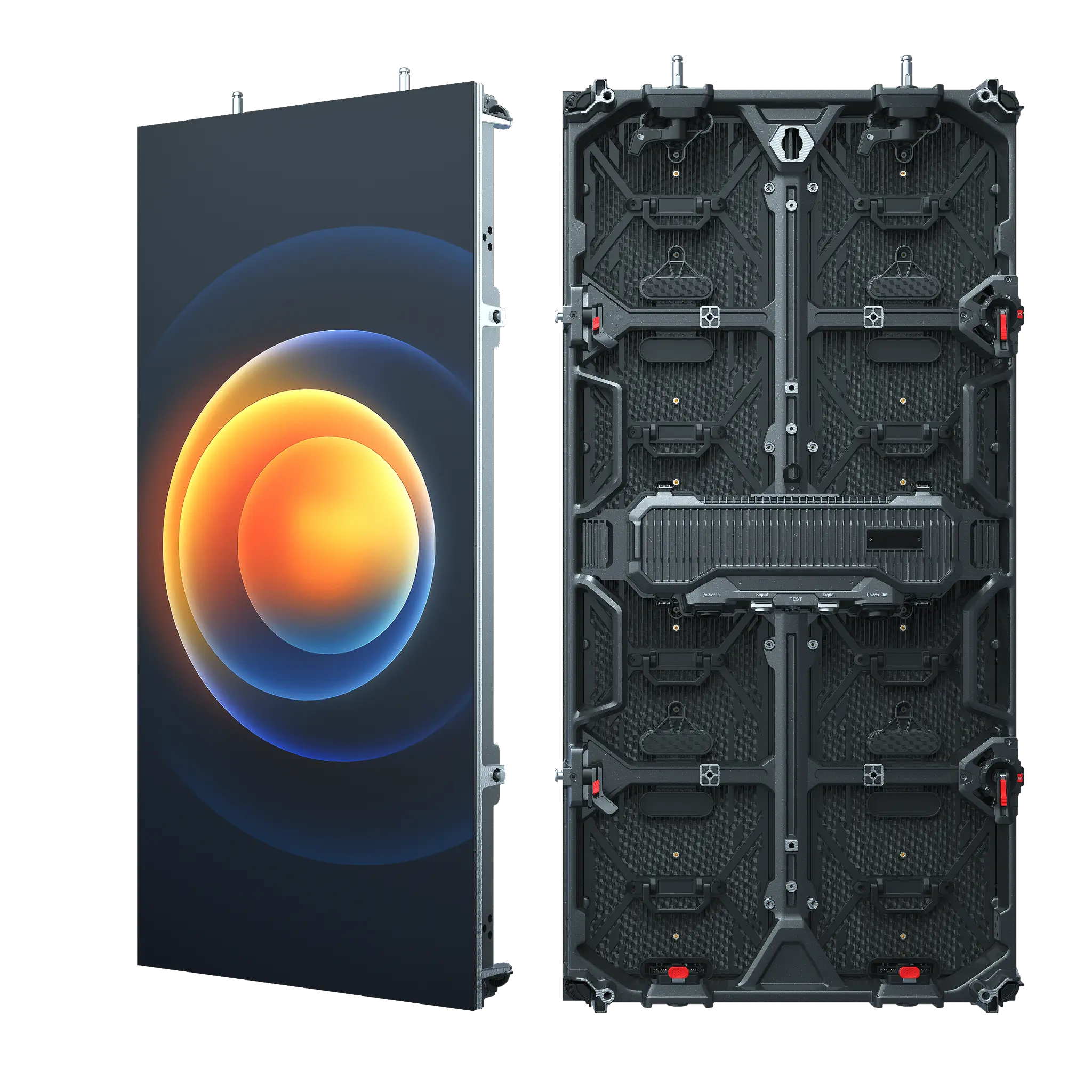

GLADIATOR
INDOOR
The touring-grade indoor LED panel built for rental, live events, and permanent installs. Snap-on modules, superior locking, and broadcast-quality refresh rates.
WHERE GLADIATOR INDOOR PERFORMS
BUILT FOR THE ROAD

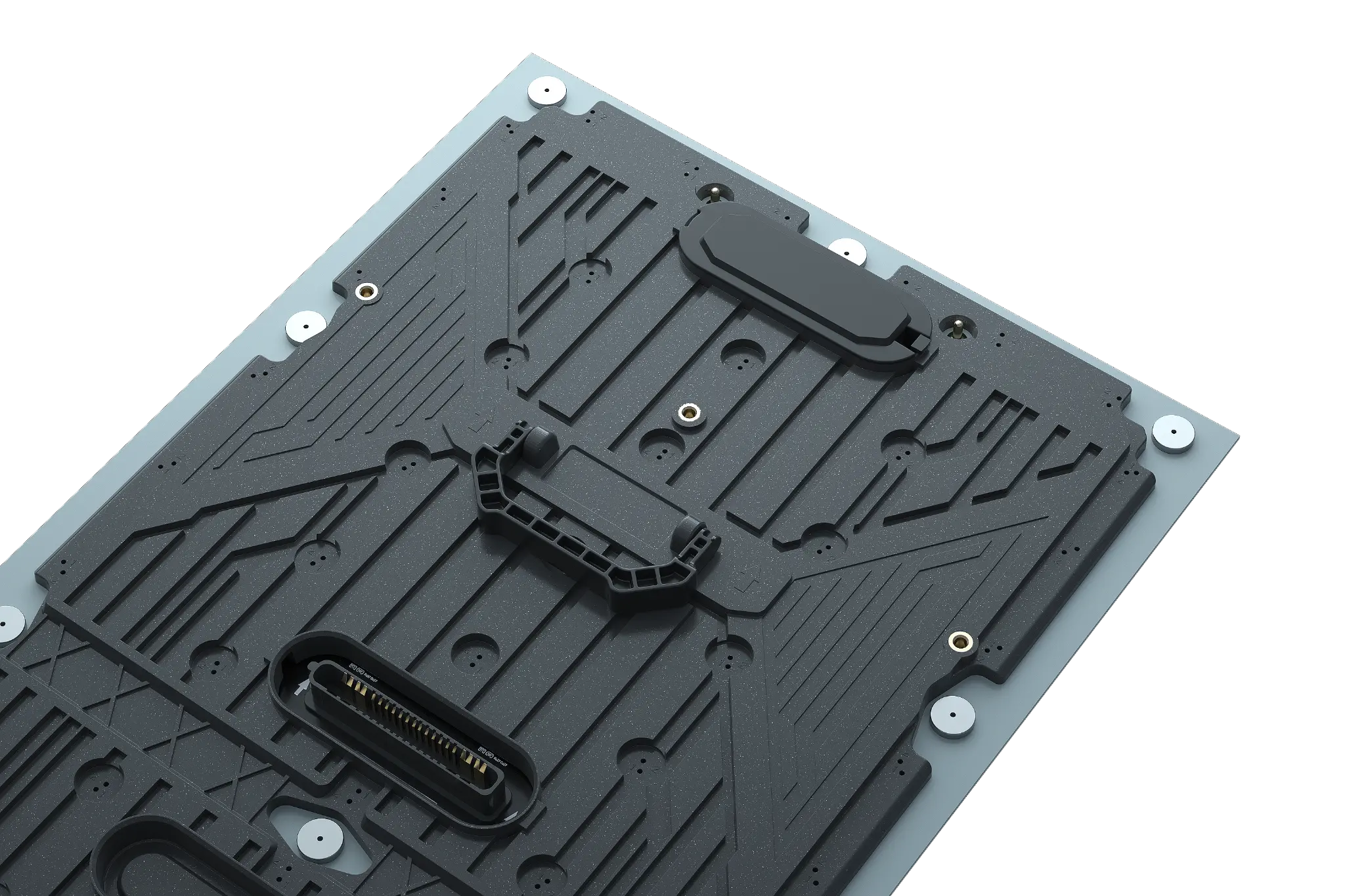

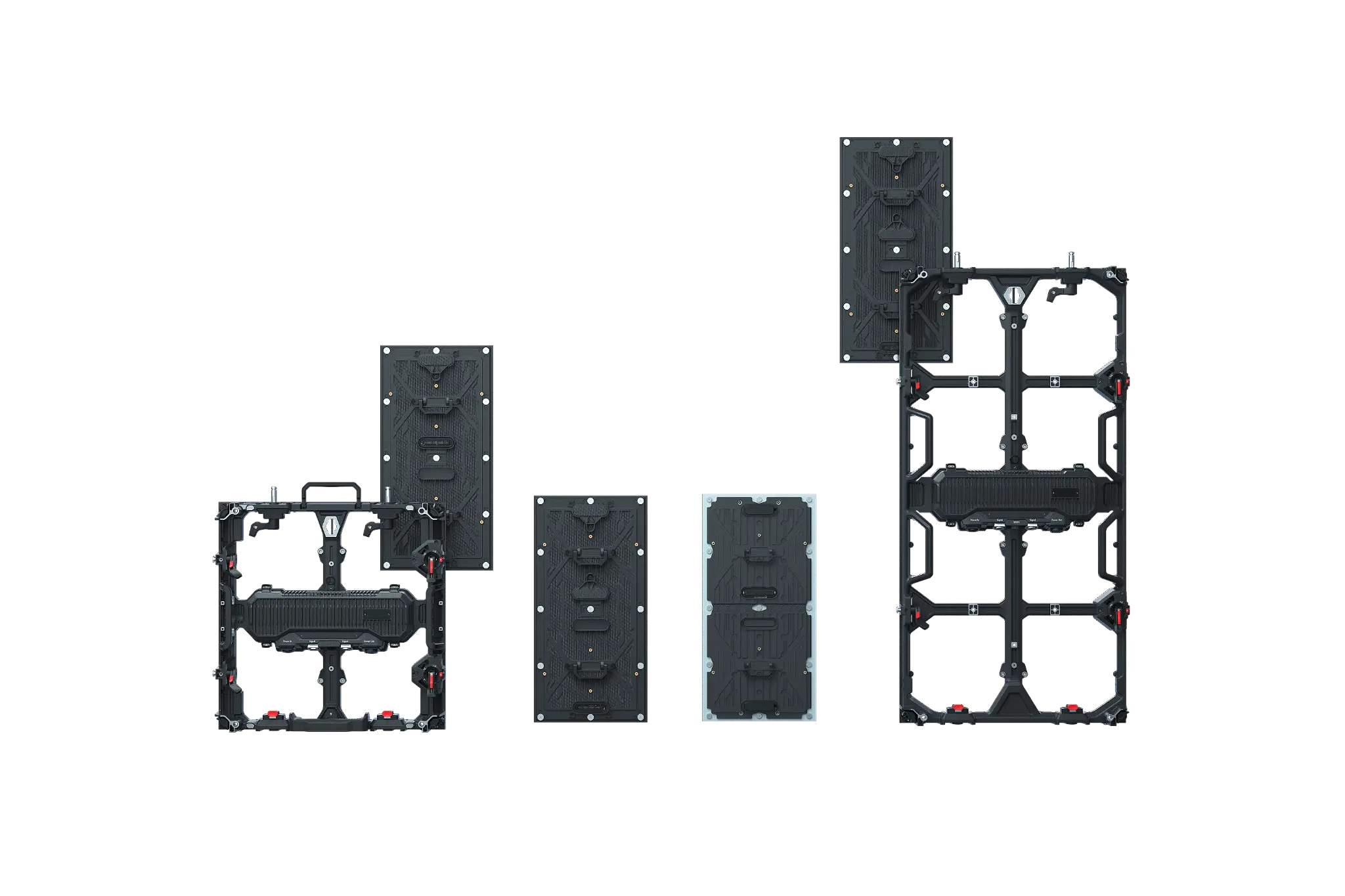

Easy Installation
Tool-free snap-on modules and fast-lock connectors allow a single technician to assemble a full wall in record time.

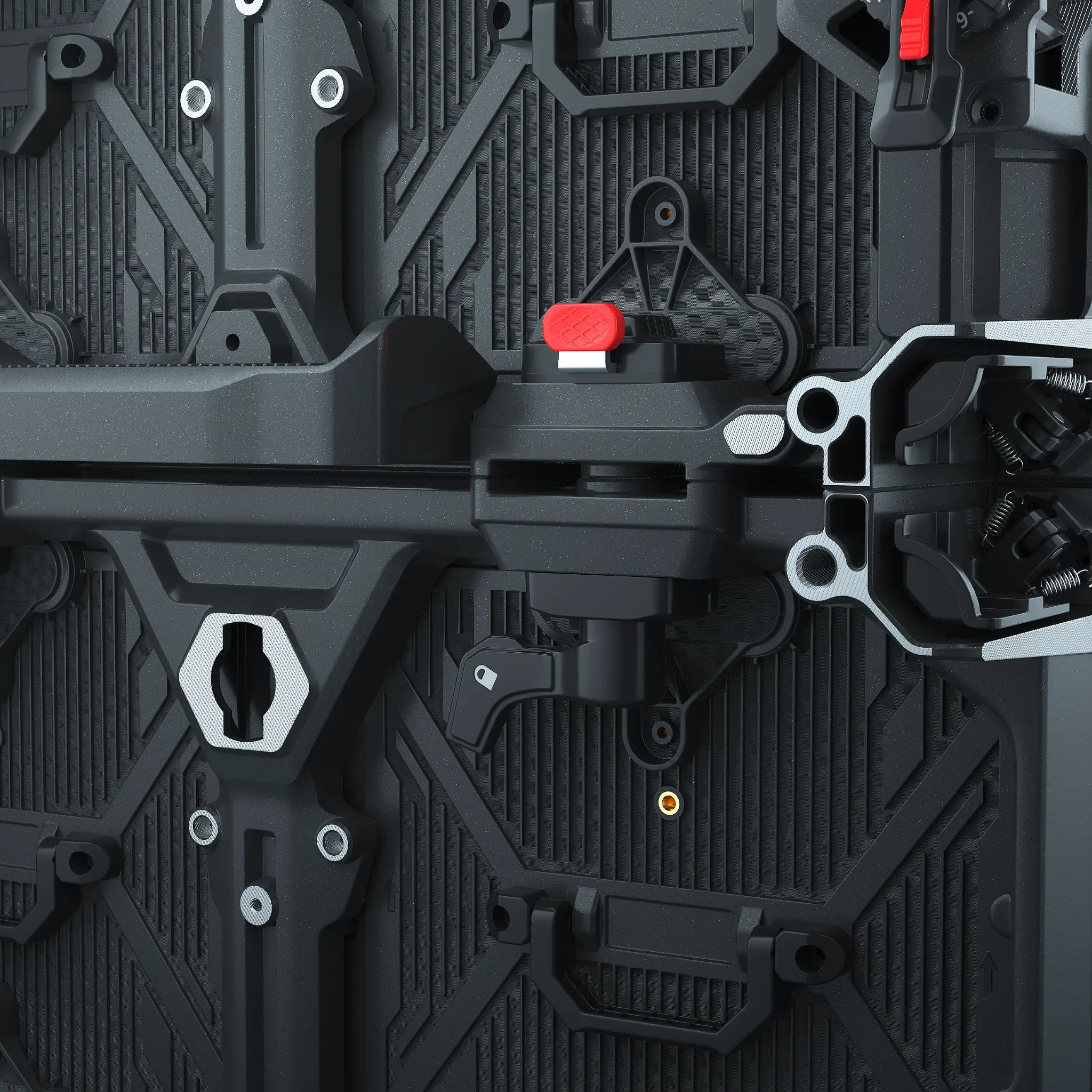

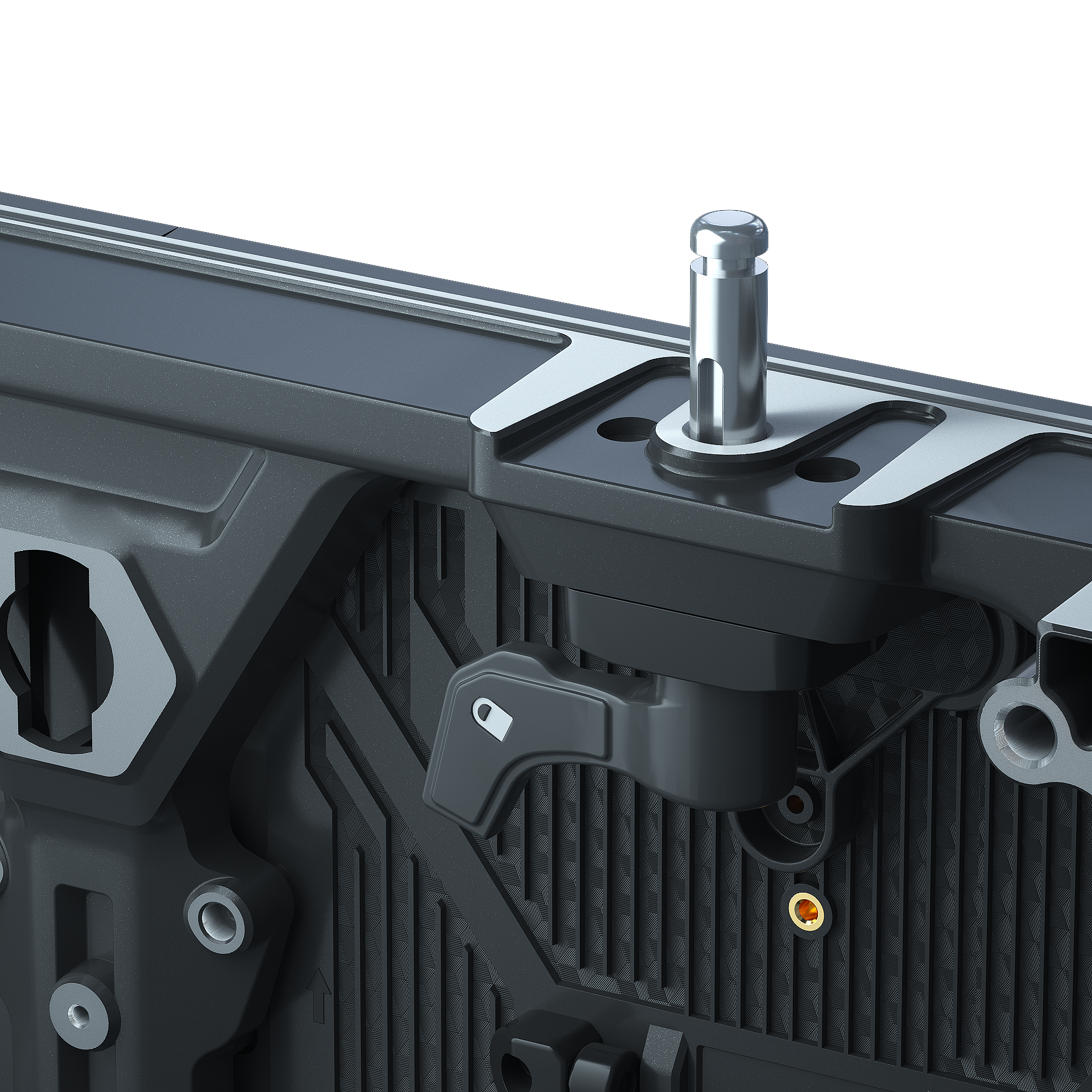

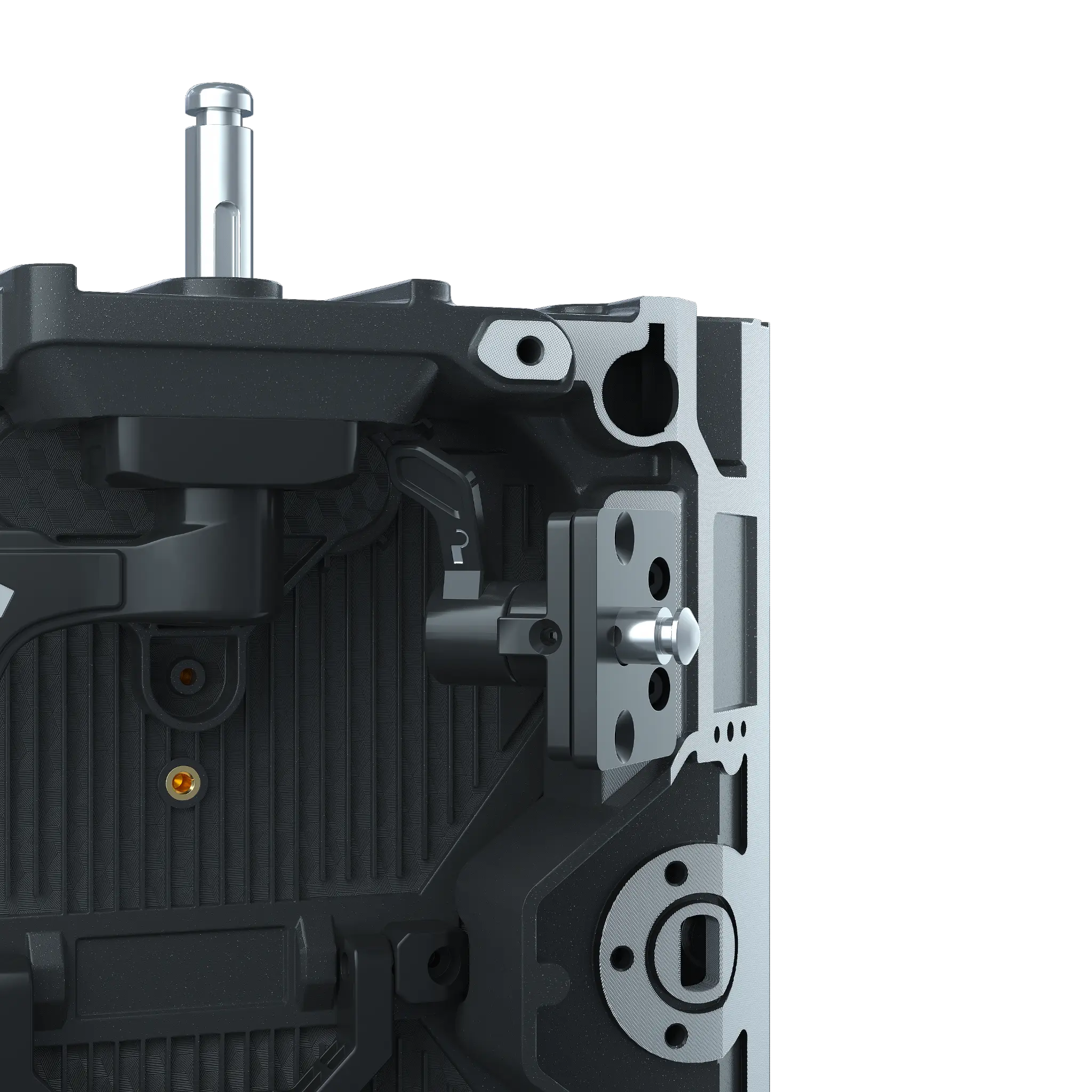

Superior Panel Locking

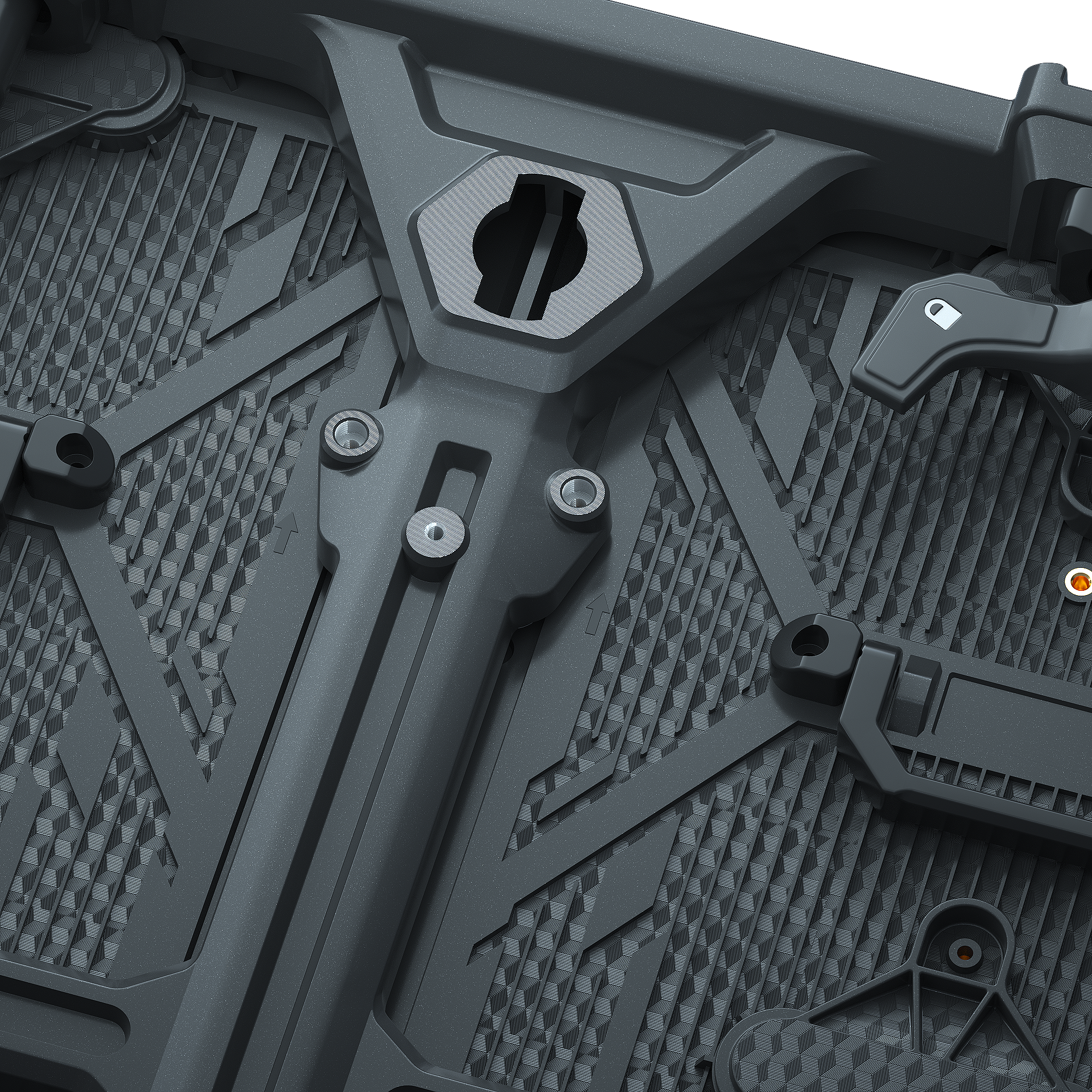

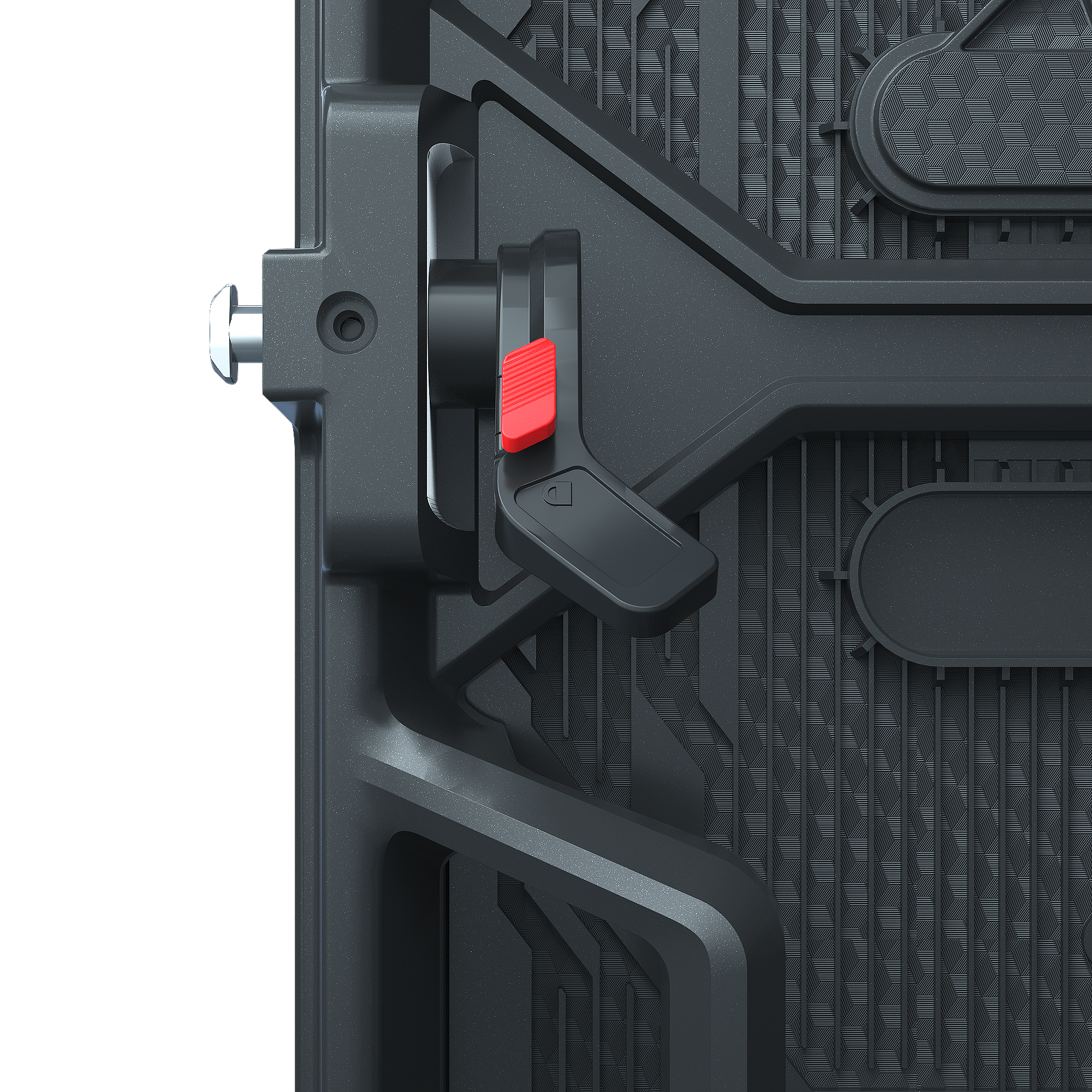

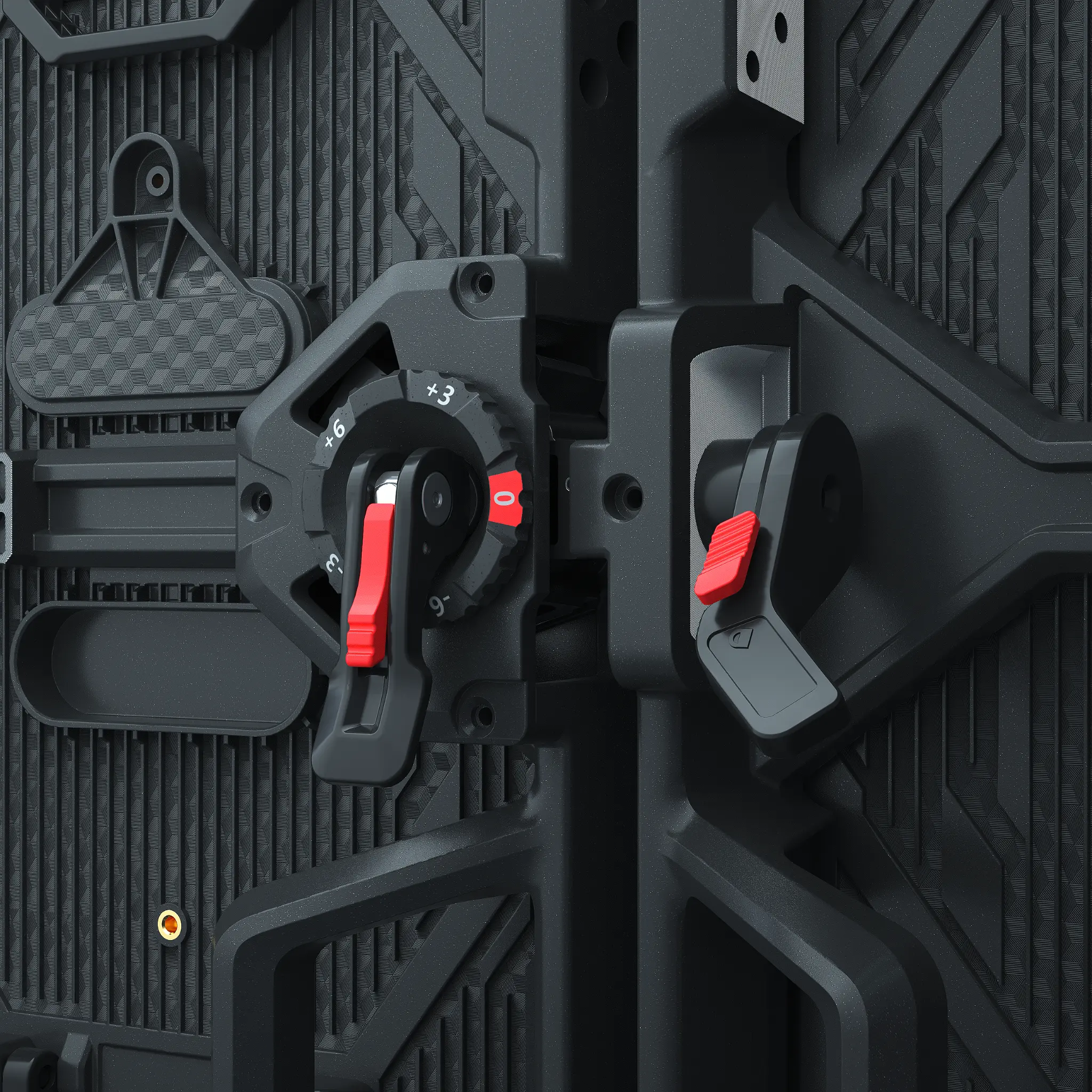

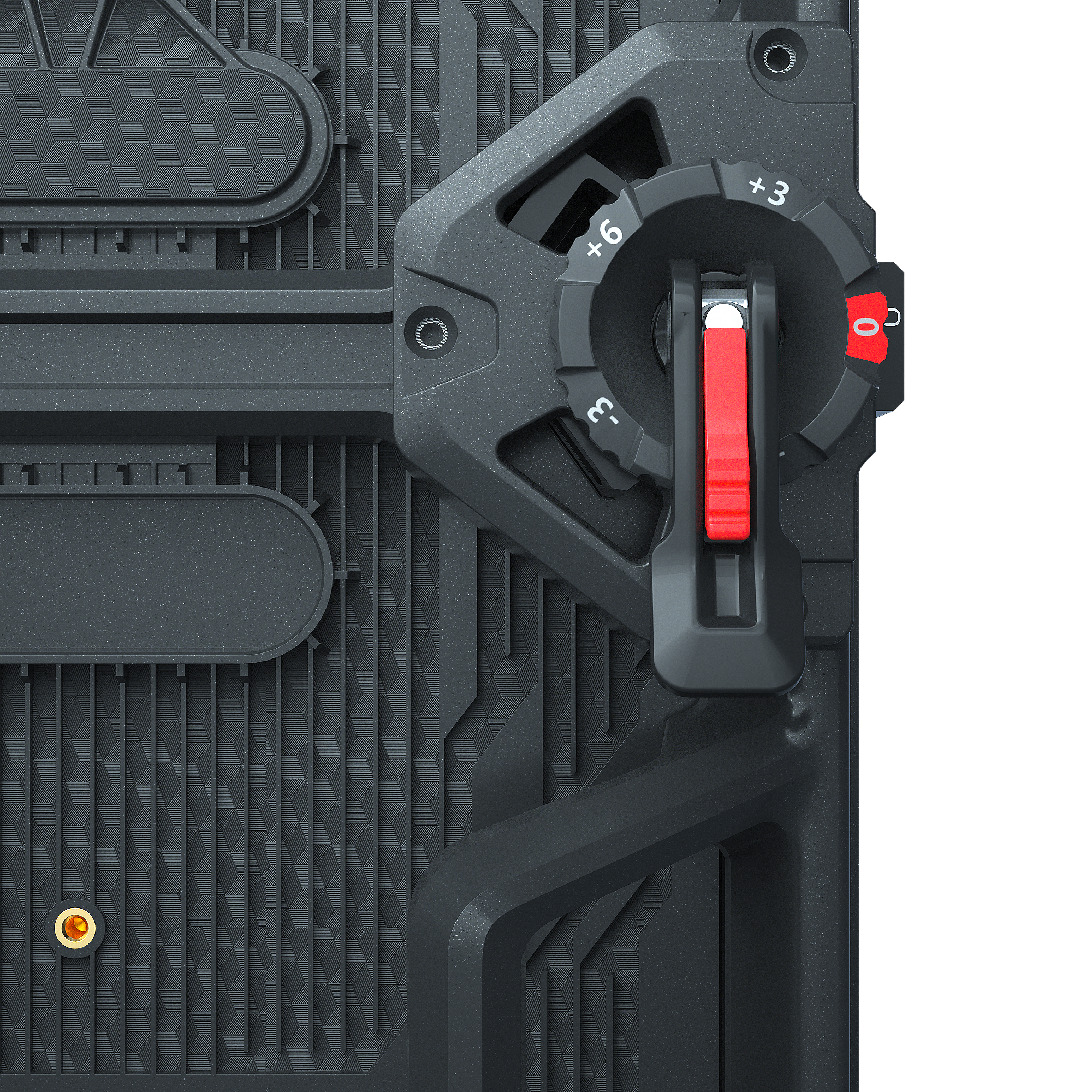

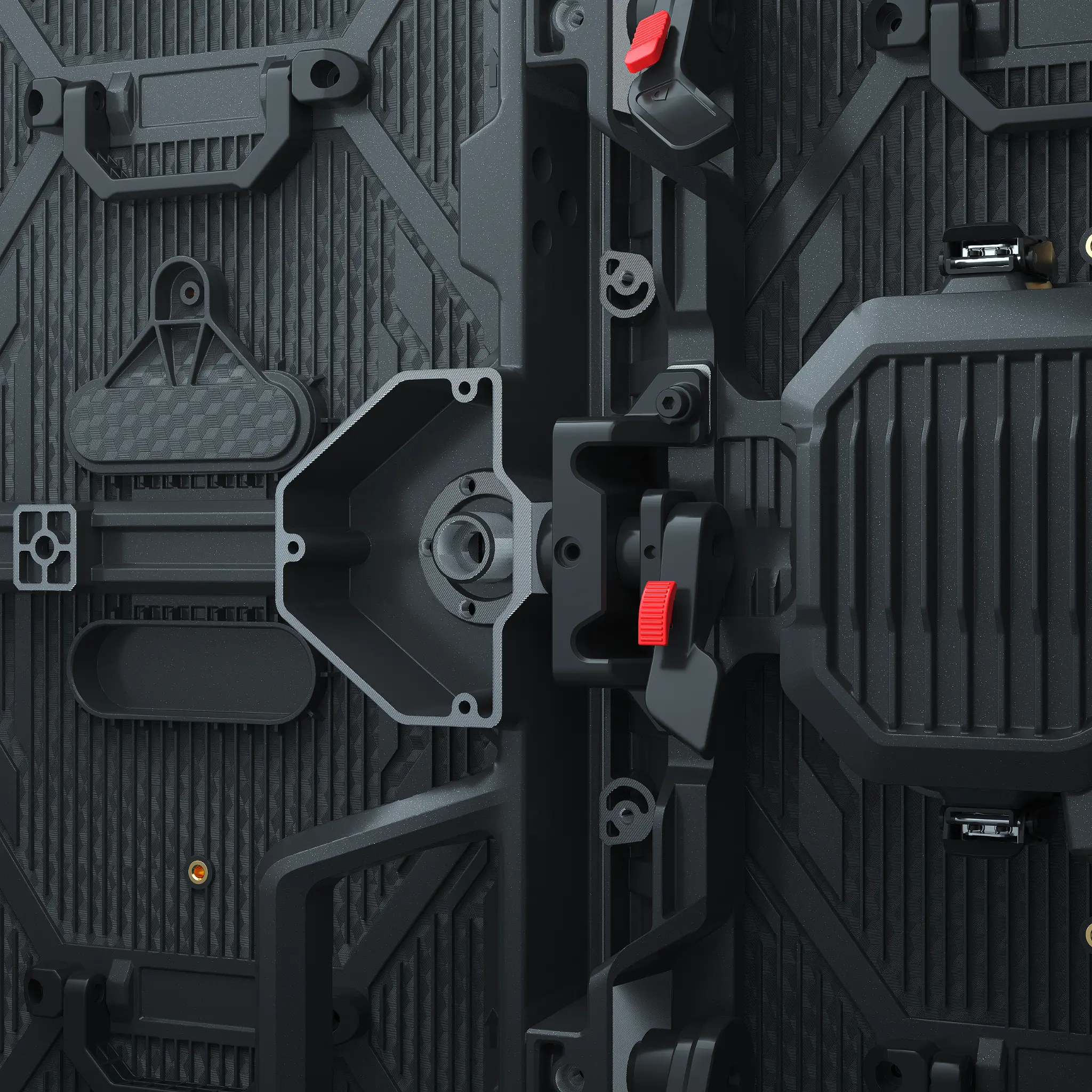

Patented top/bottom and curve-lock system withstands real-world wind loads — trusted for touring productions worldwide.

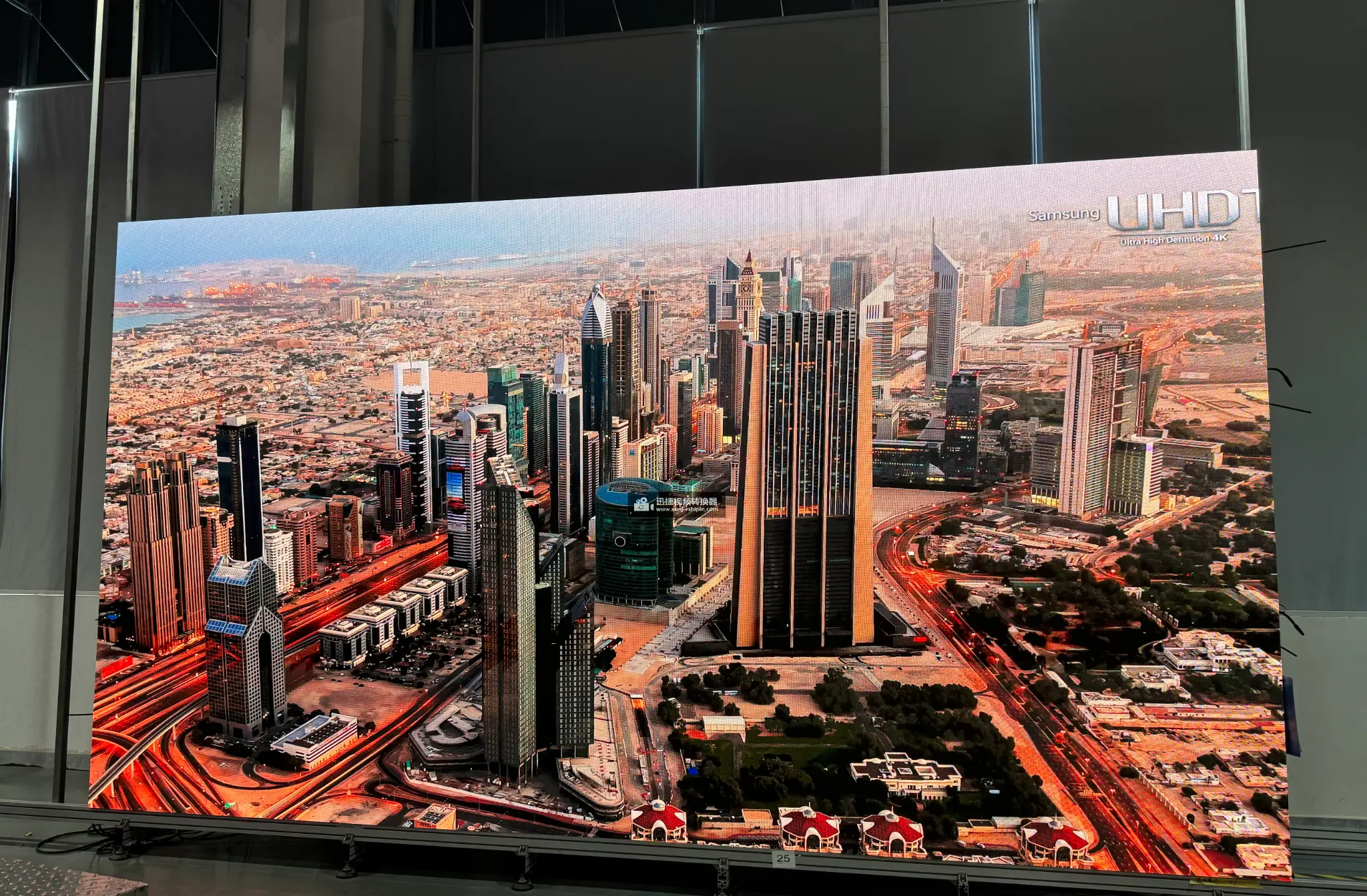

Superior Color Consistency
High-quality SMD2020 black LED chips deliver factory-calibrated color uniformity across every panel in the array.

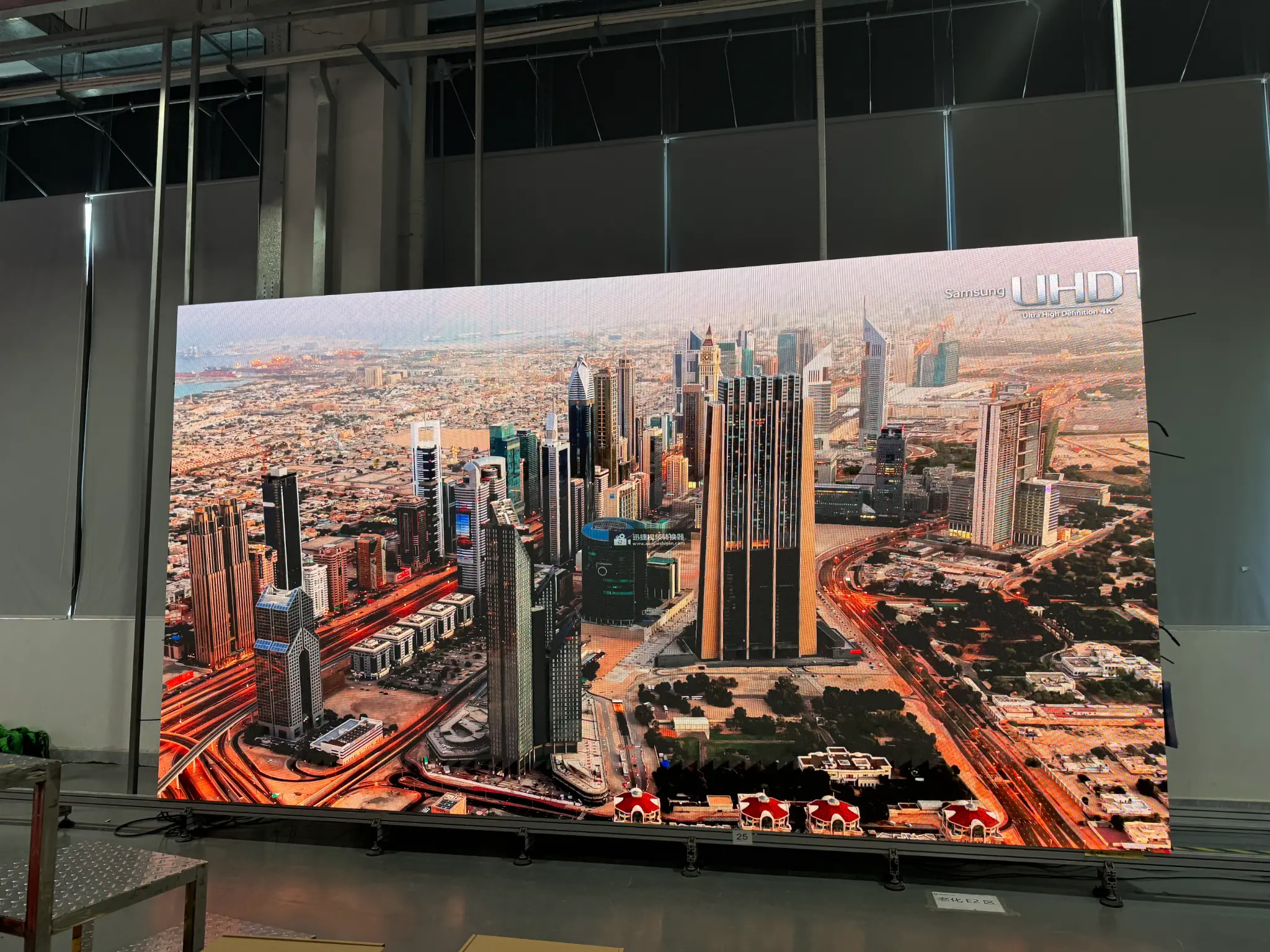

7,680–15,360 Hz Refresh
Ultra-high refresh rates eliminate moiré and flicker in broadcast and camera-facing environments.
GLADIATOR INDOOR IN DETAIL
FULL SPECIFICATIONS
| Pixel Pitch (mm) | 2.6 |
| LED Type | Black SMD2020 Copper wire |
| Environment | Indoor |

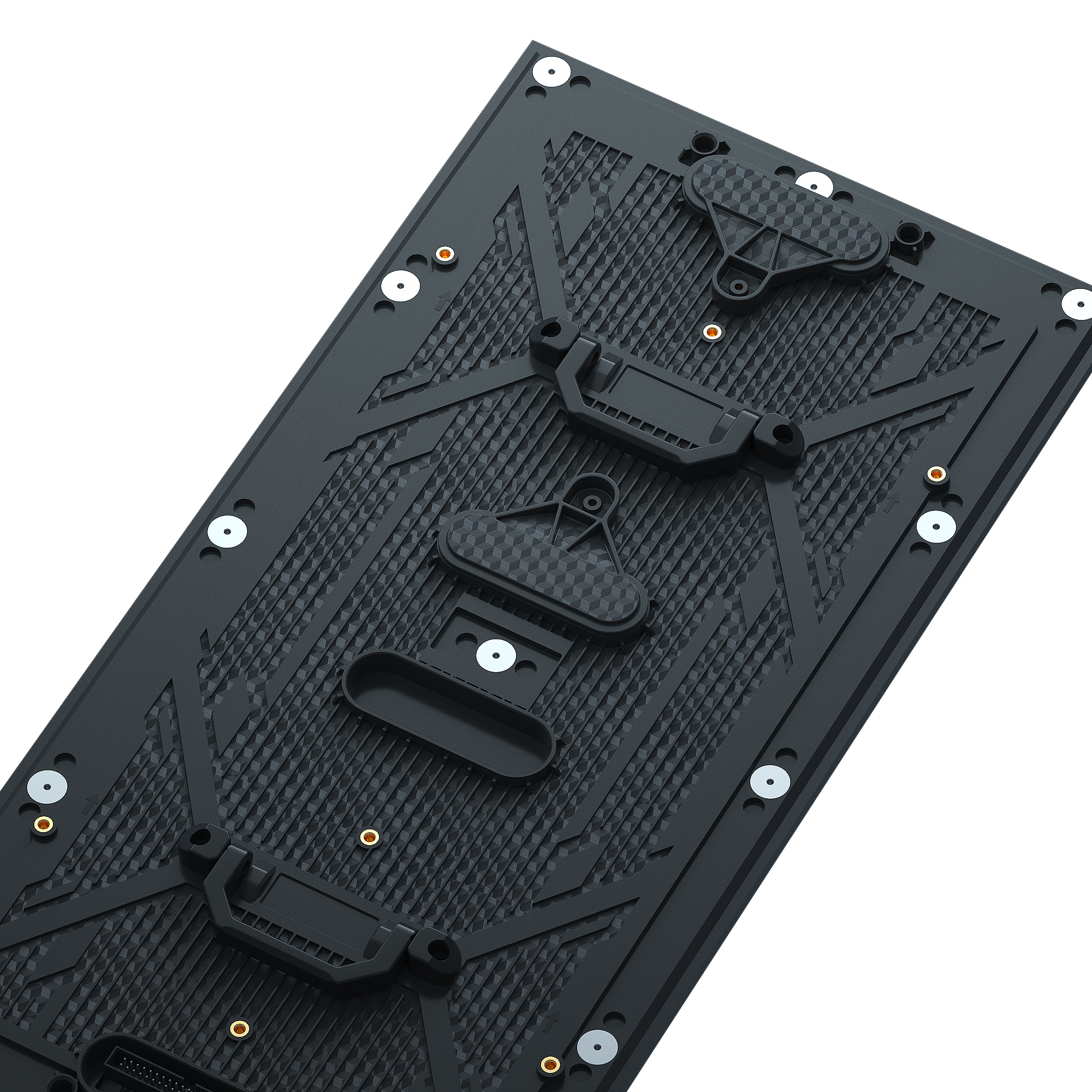

| Module Size (mm) | 250 × 500 |
| Module Resolution | 96 × 192 |

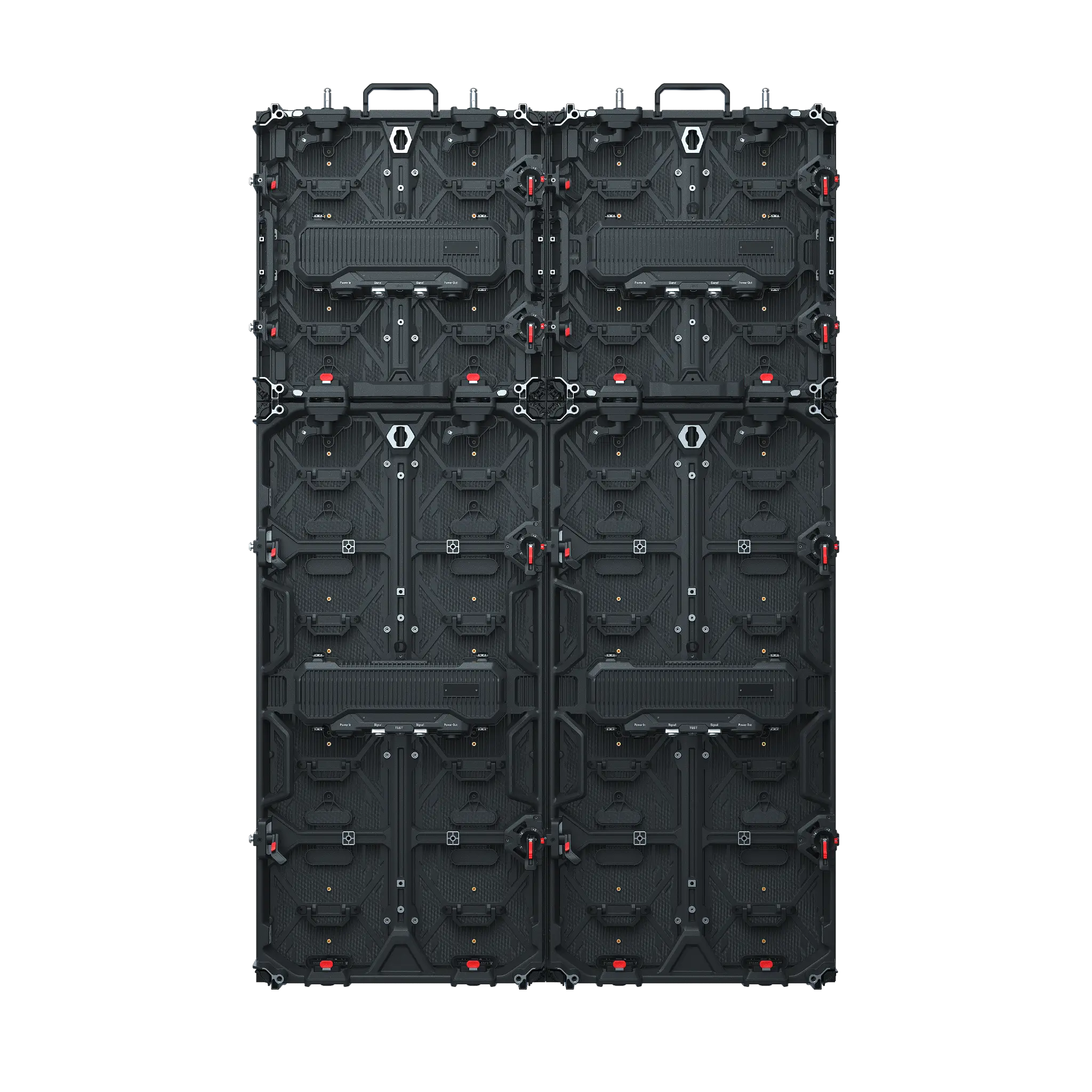

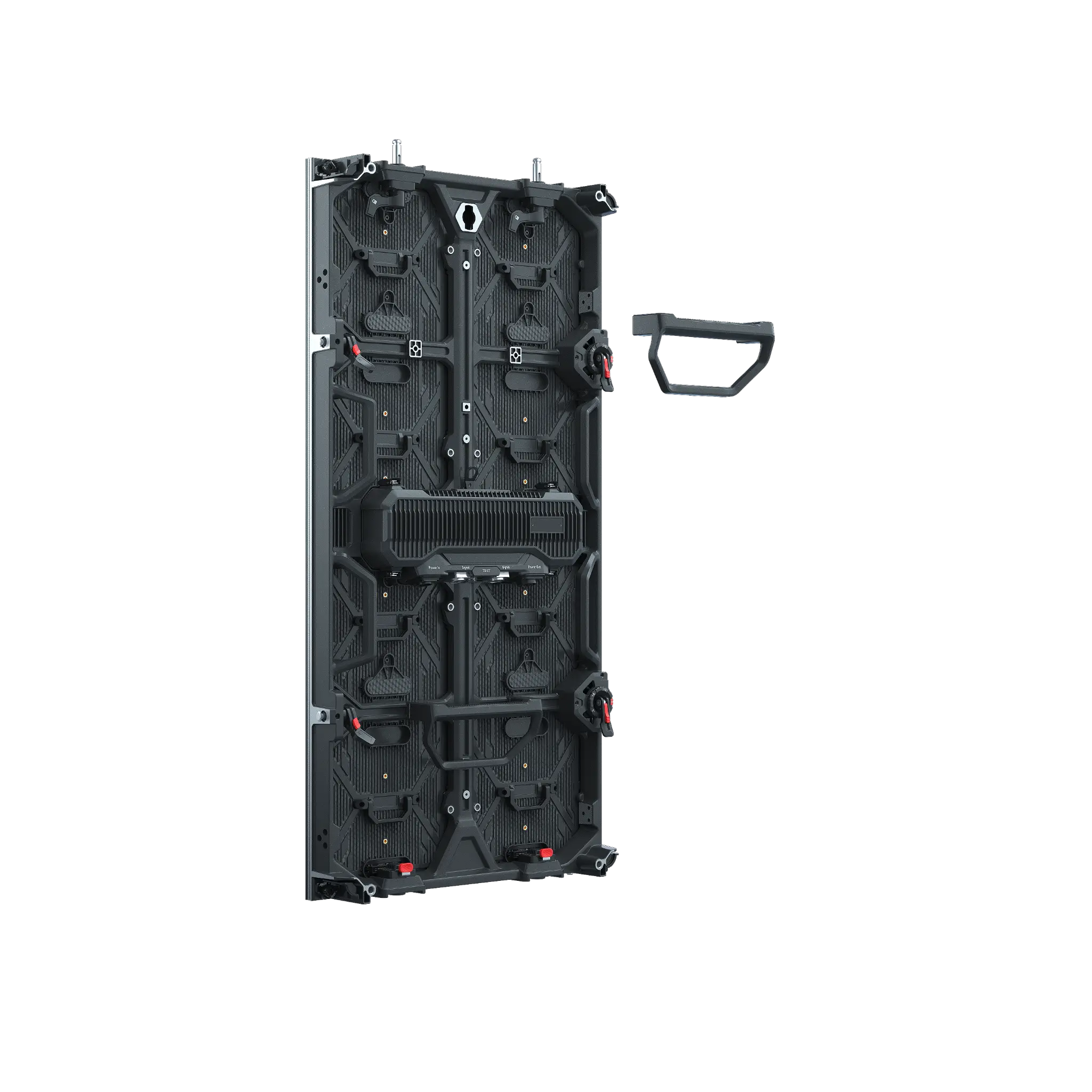

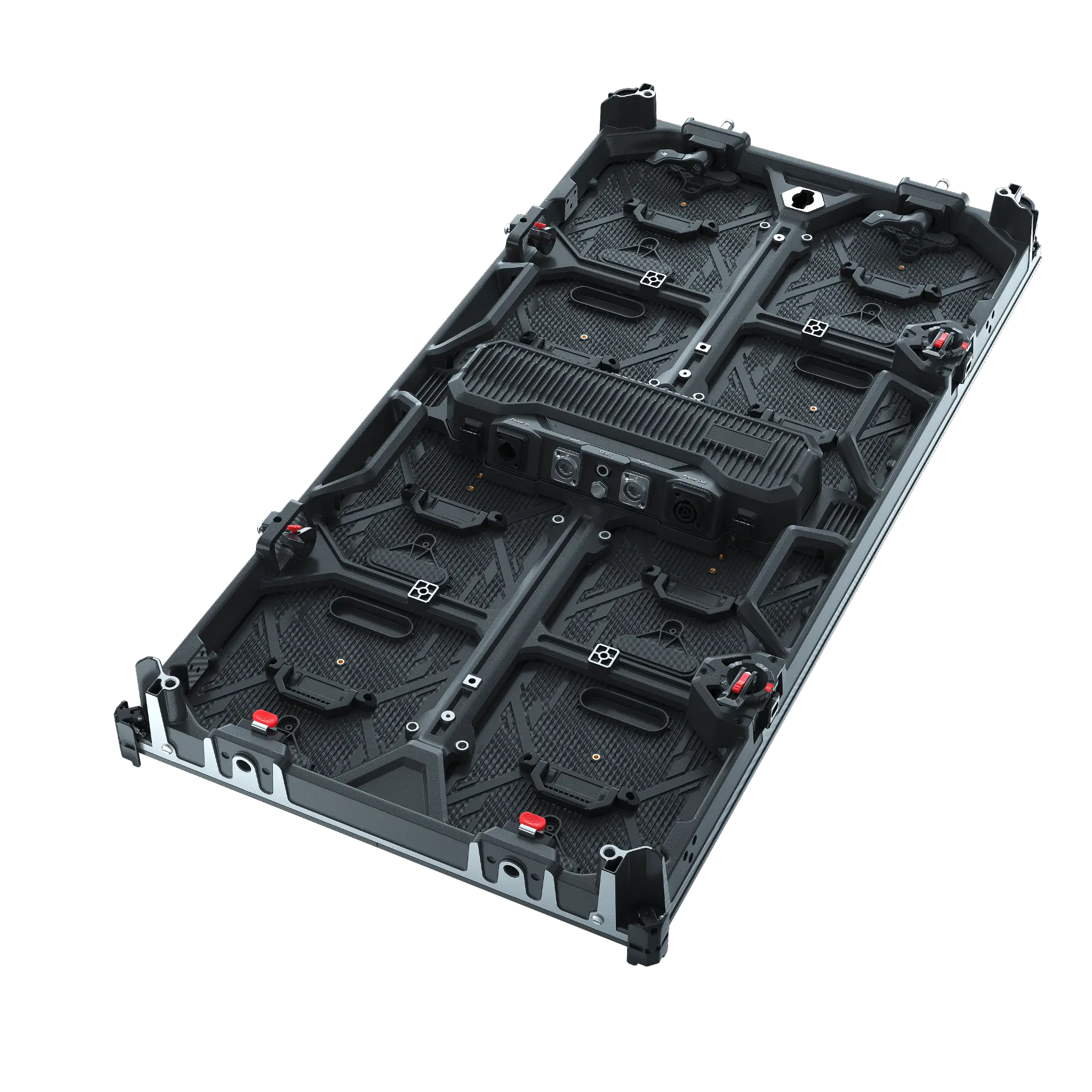

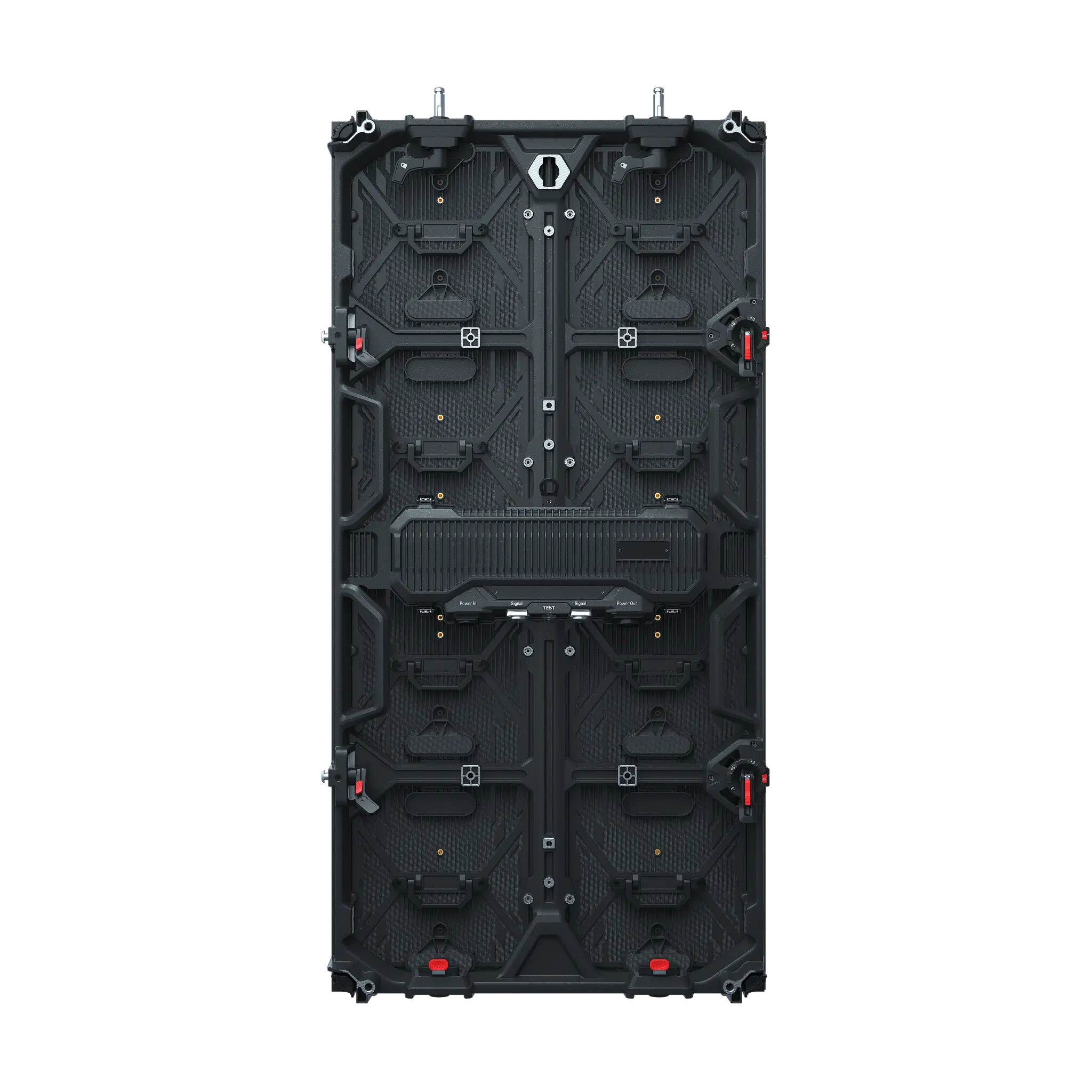

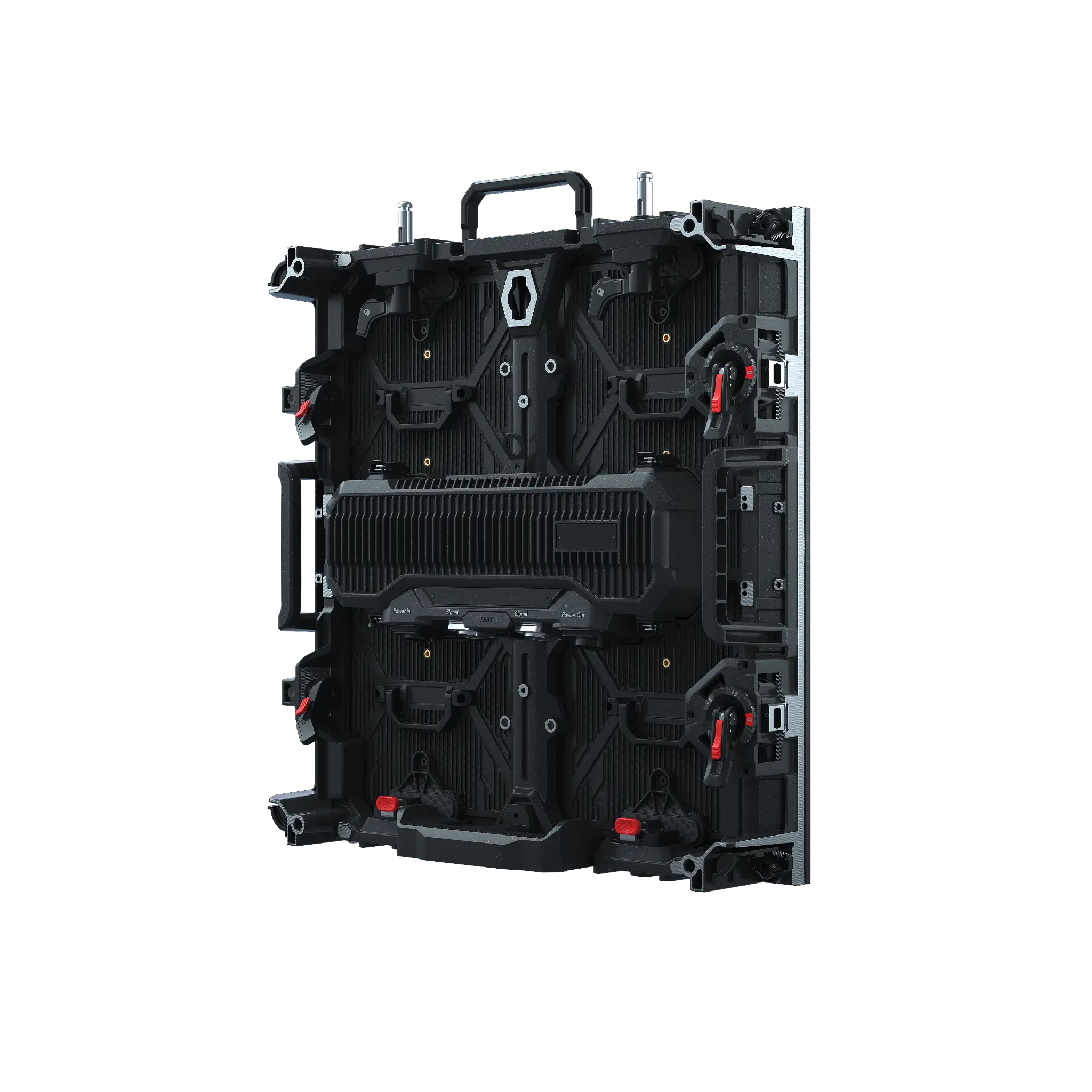

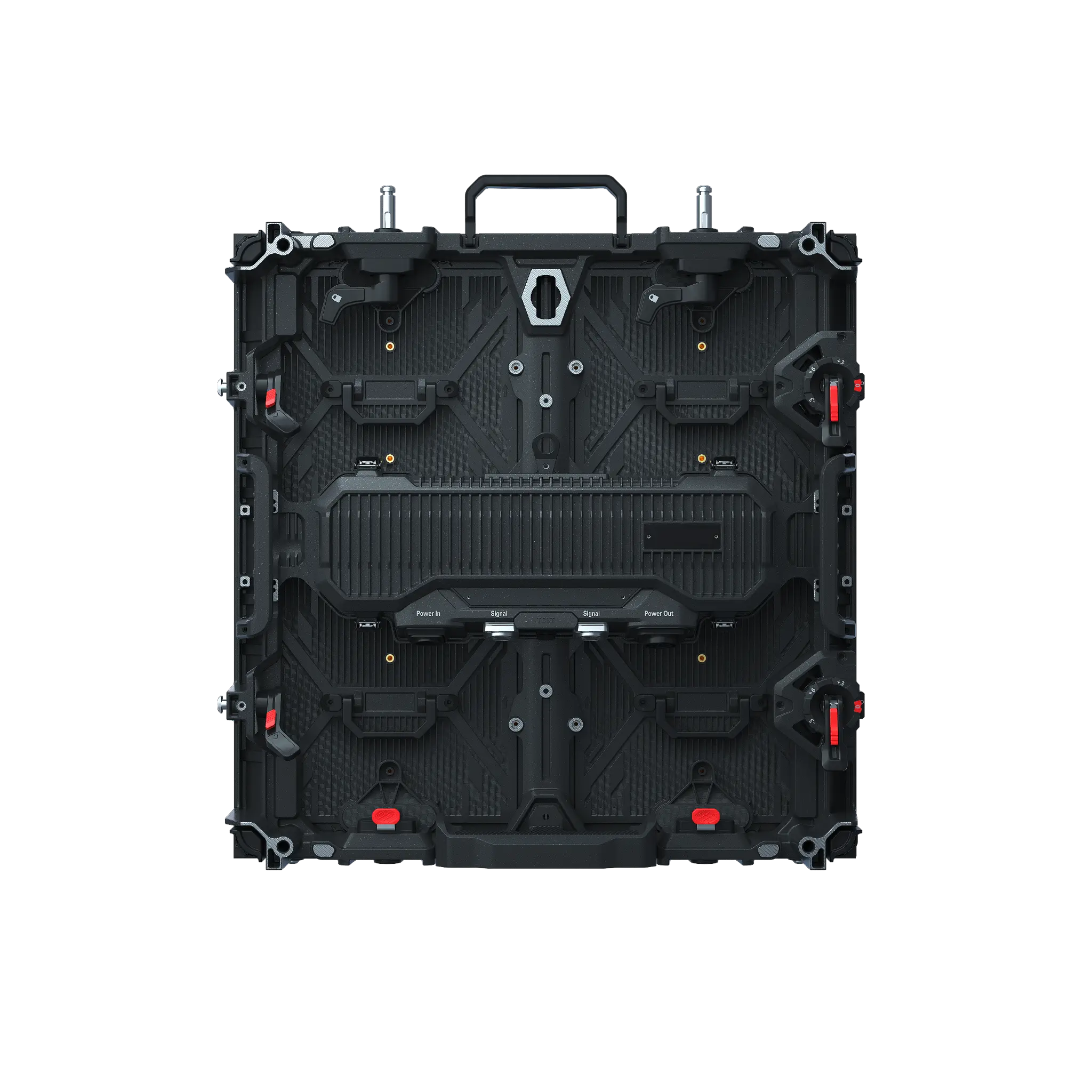

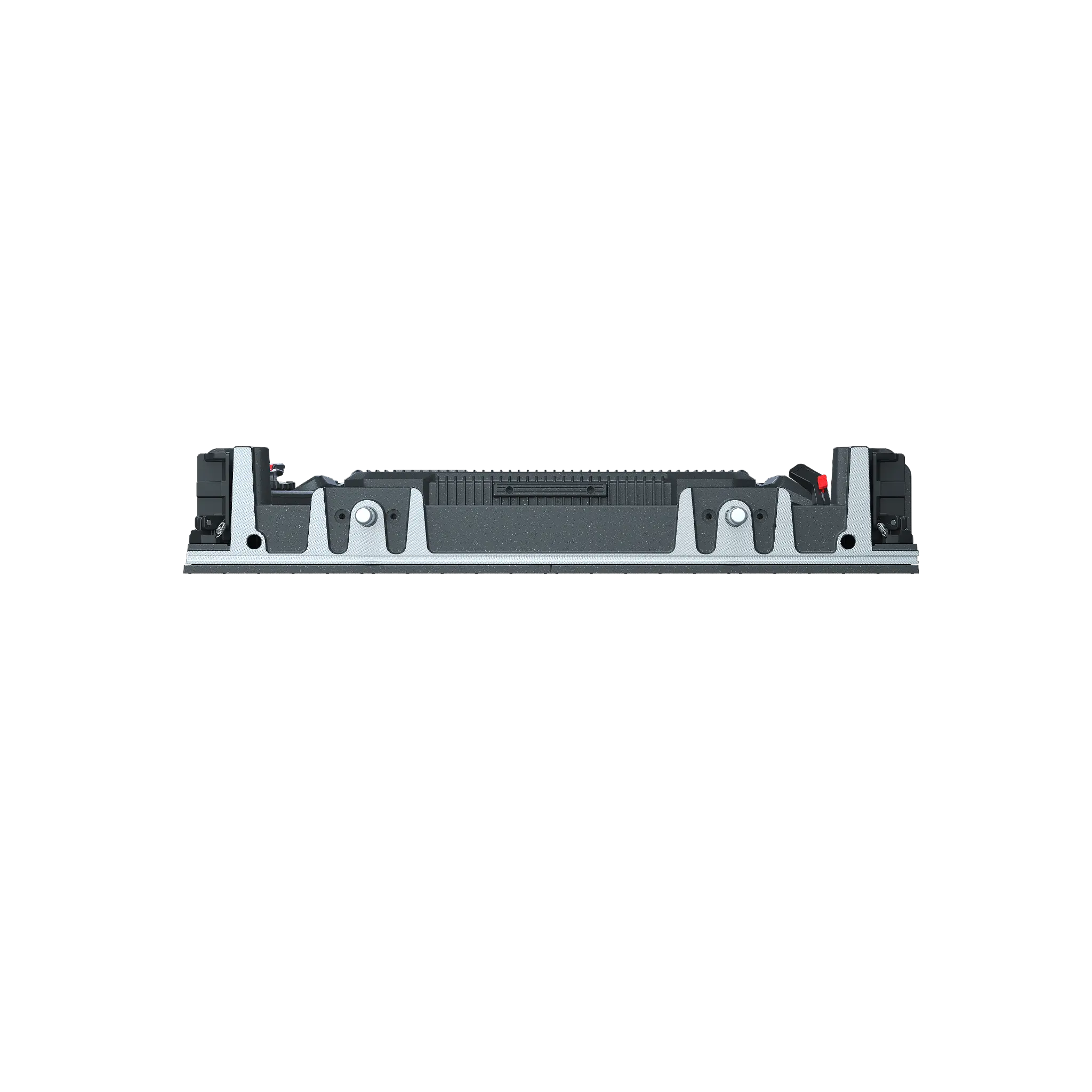

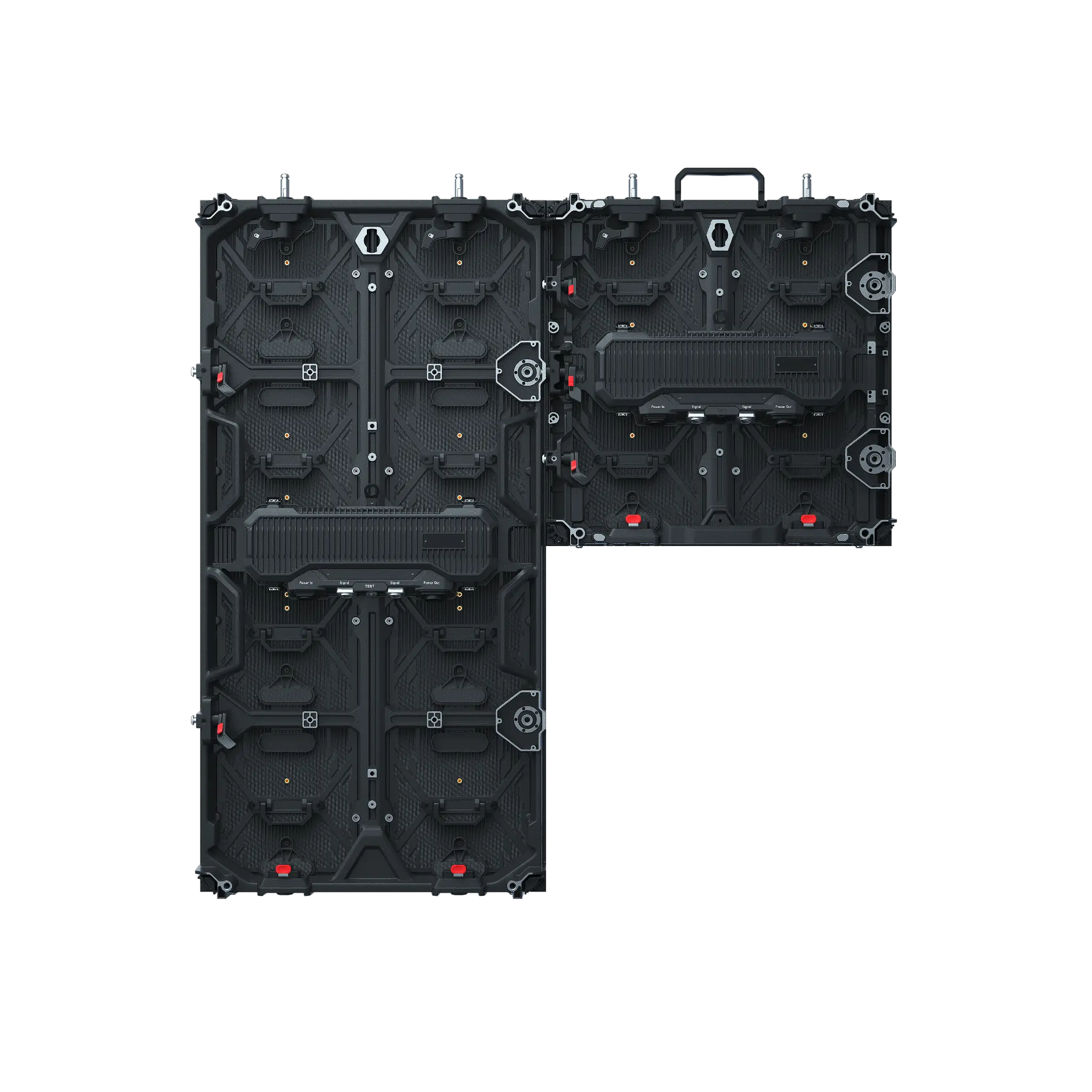

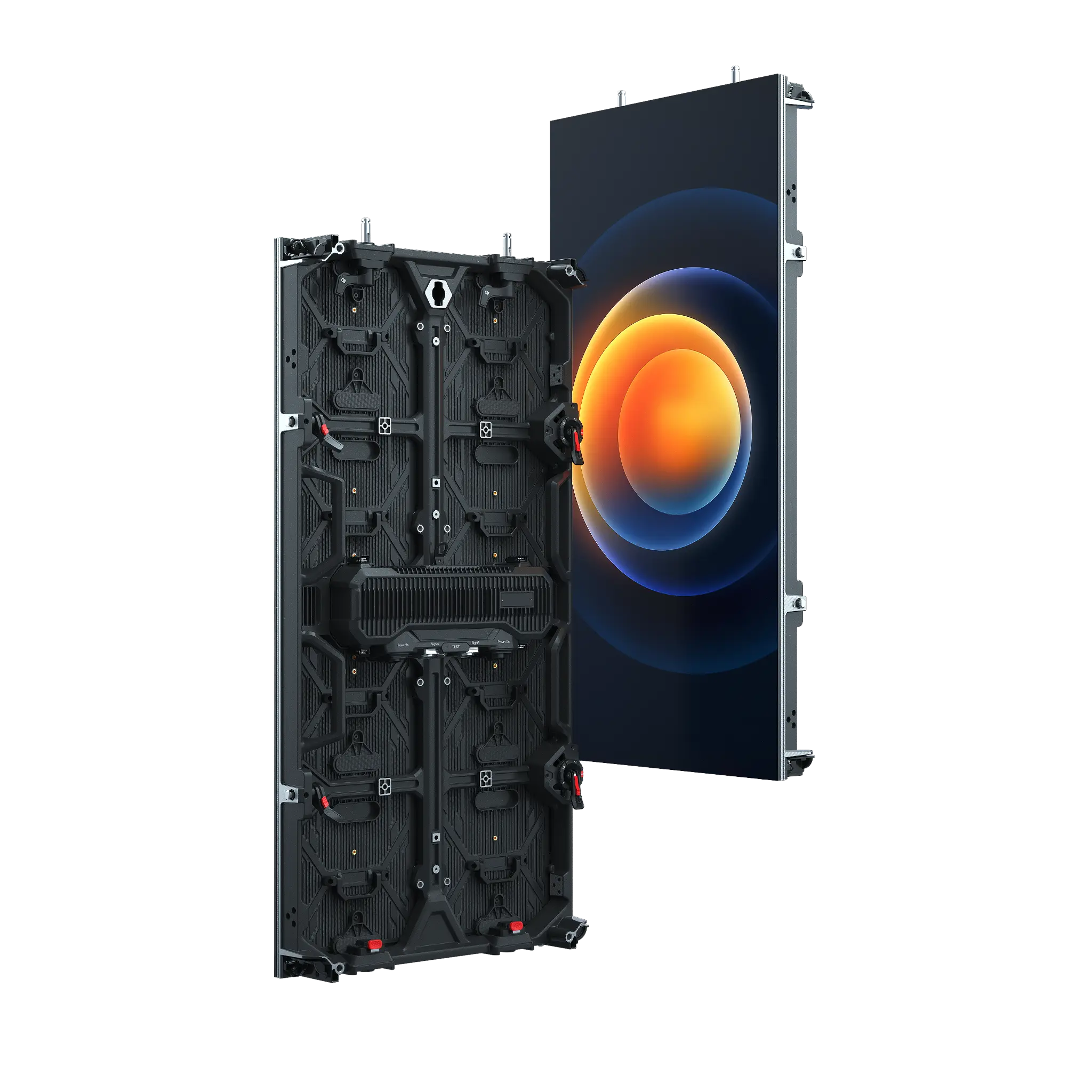

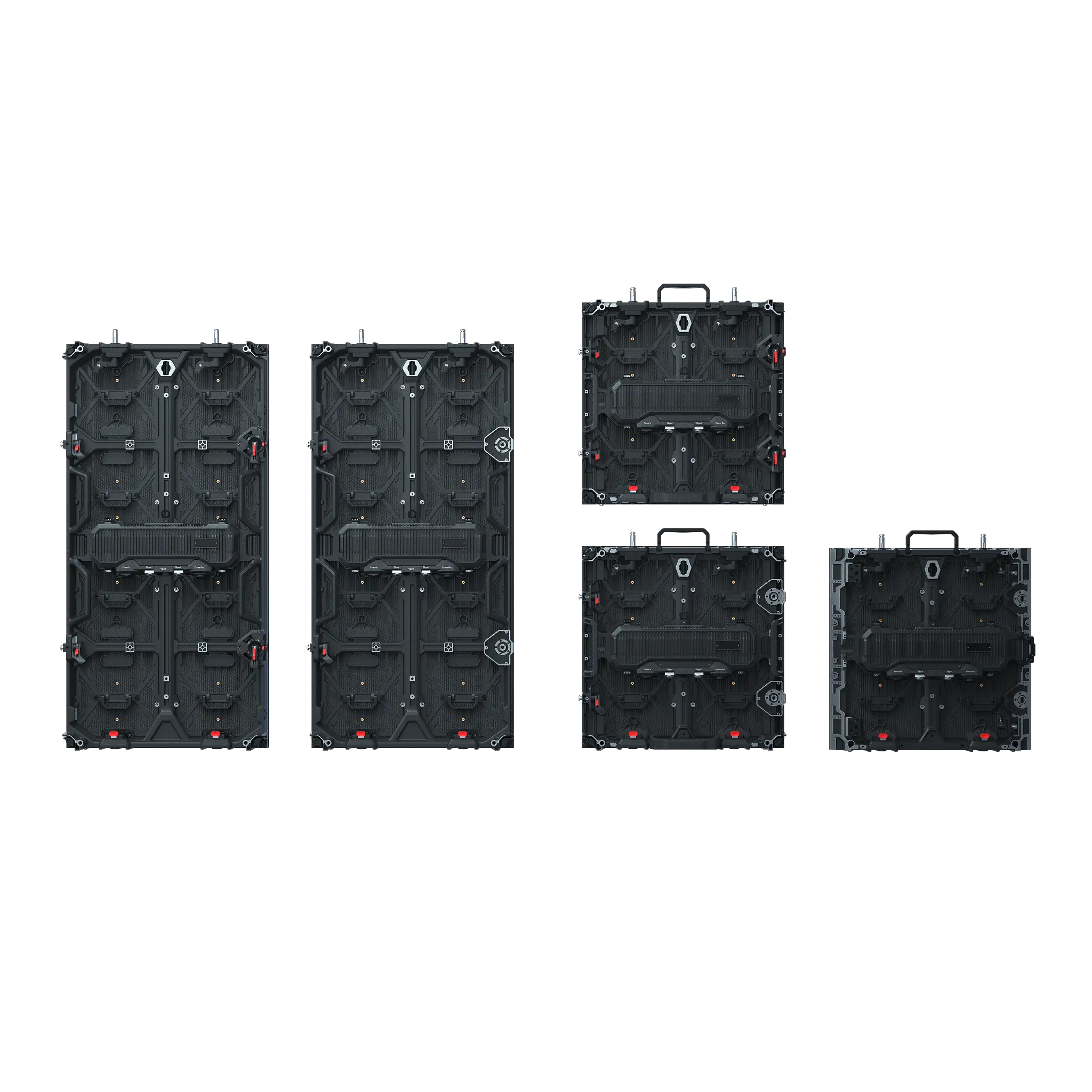

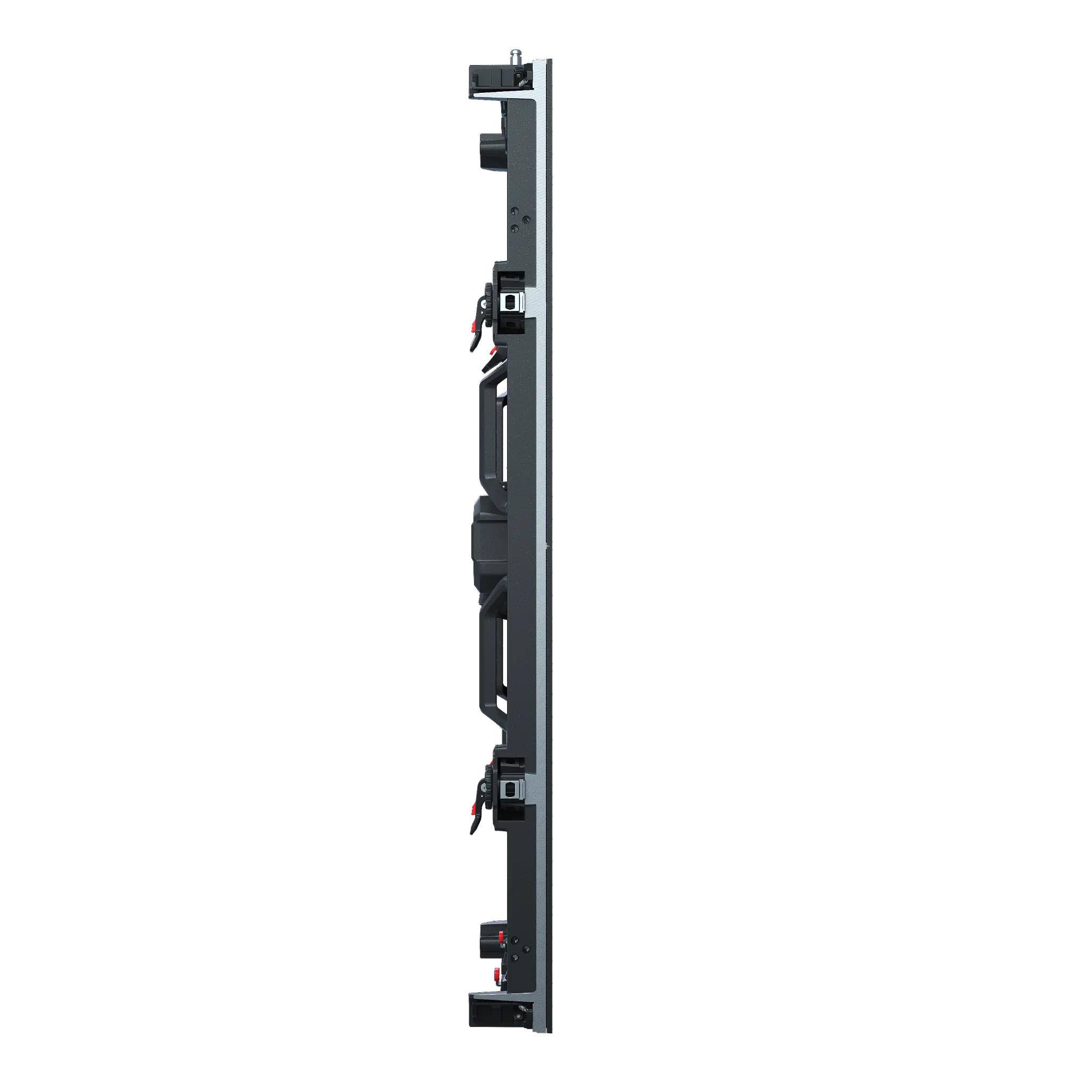

| Cabinet Sizes (mm) | 500×500×83 / 500×1000×83 |
| Cabinet Resolution | 192×192 / 192×384 |
| Module Quantity | 2 / 4 pcs |
| Cabinet Weight | 6.8 kg / 11.4 kg |
| Brightness (cd/m²) | 900 |
| Viewing Angle H/V | 160° / 140° |
| Min. Viewing Distance (m) | 2.6 |
| Gray Scale (bit) | 15 bit |
| Refresh Rate (Hz) | 7,680–15,360 |
| Power Max/Avg (W/m²) | 400 / 133 |
| Work Voltage | AC 100–240V |
| Driving Mode | 1/24 Scan / SM16329SW |
| Contrast Ratio | 3,000:1 |
| Color Temperature (K) | 5,500–9,500 (Adj.) |
| Operating Temp (°C) | 0°C to +40°C |
| Storage Temp (°C) | -20°C to +85°C |
| IP Rating (Front/Rear) | IP30 / IP30 |
| Curved Angle (°) | ±6, ±3, 0 (optional) |

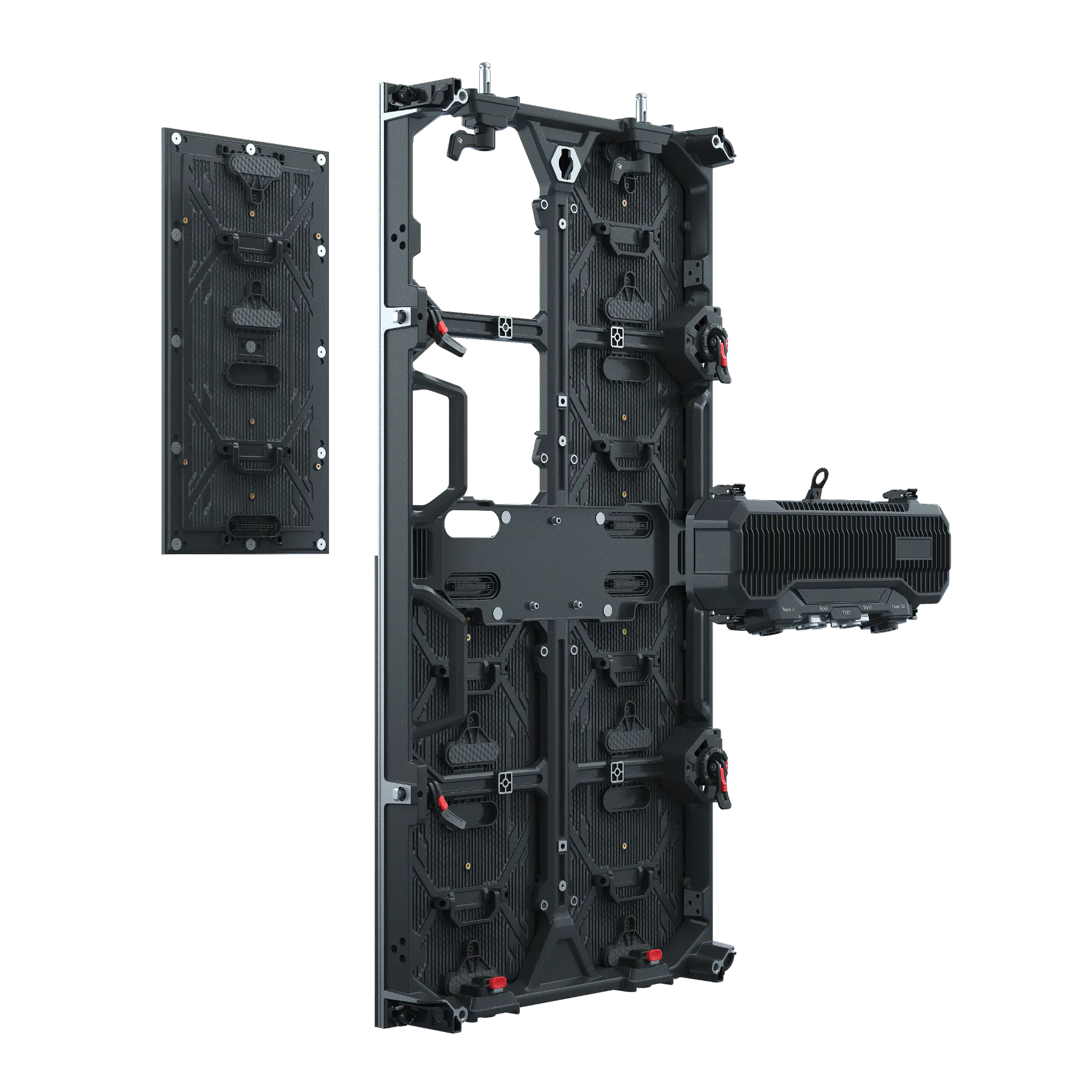

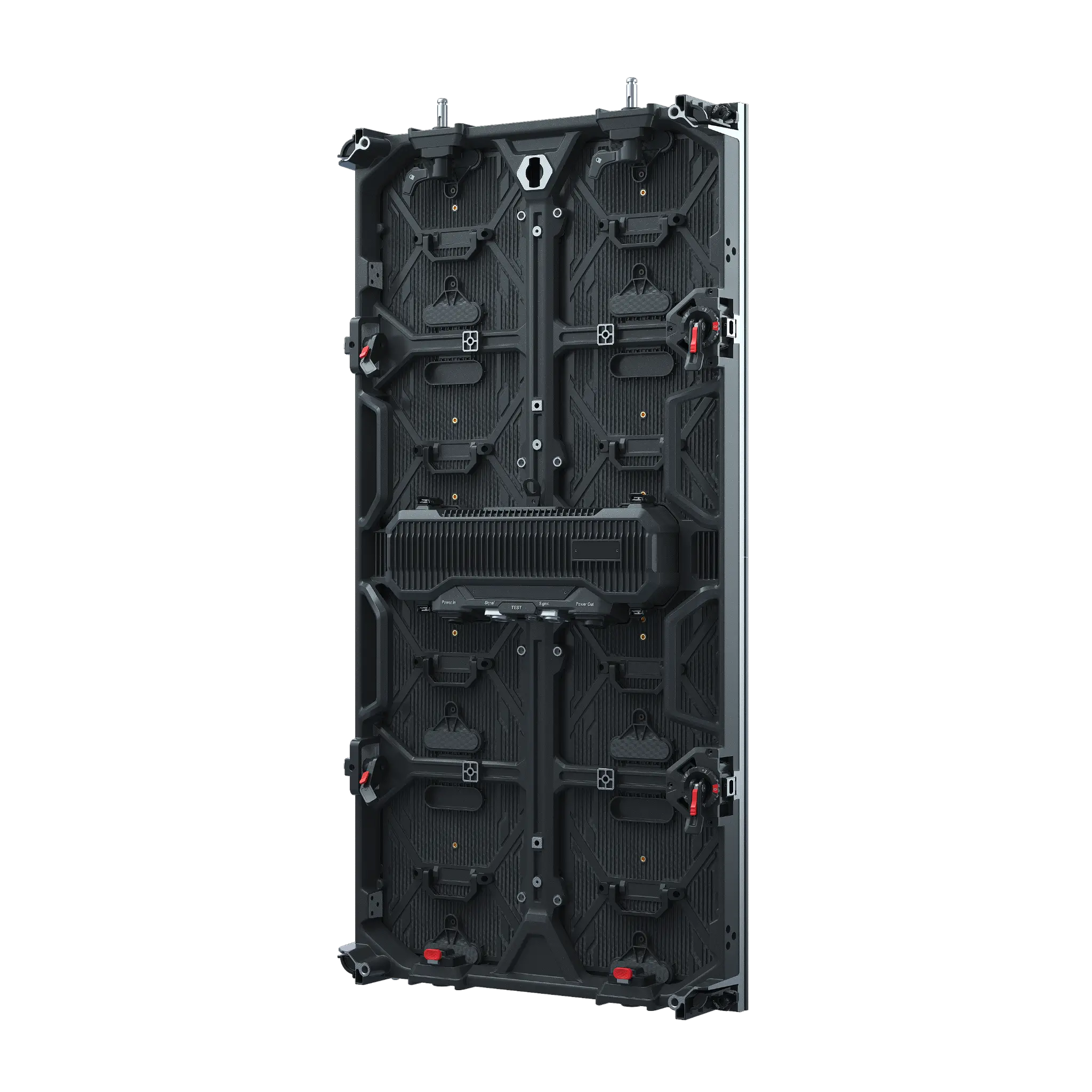

| Maintenance | Rear |

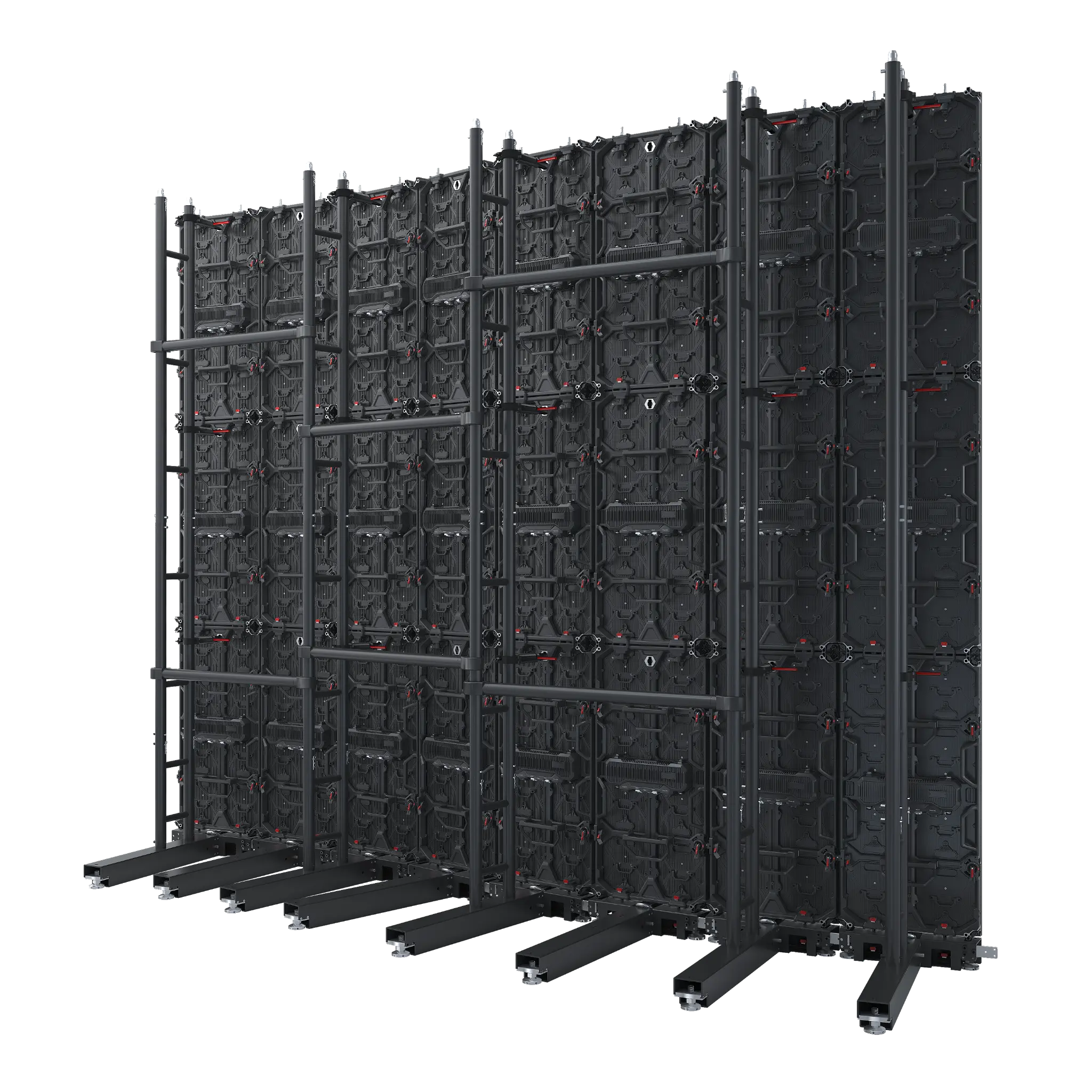

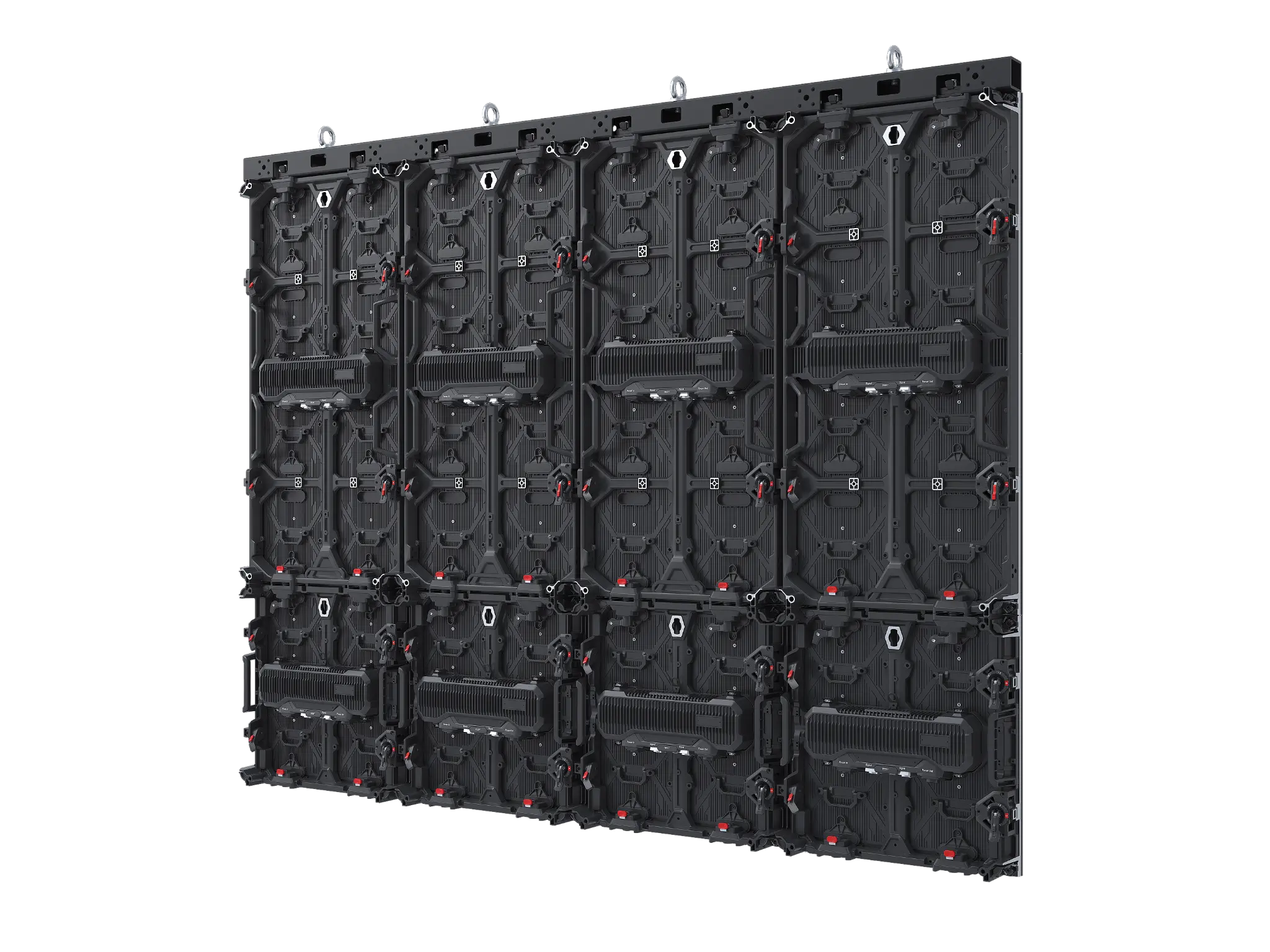

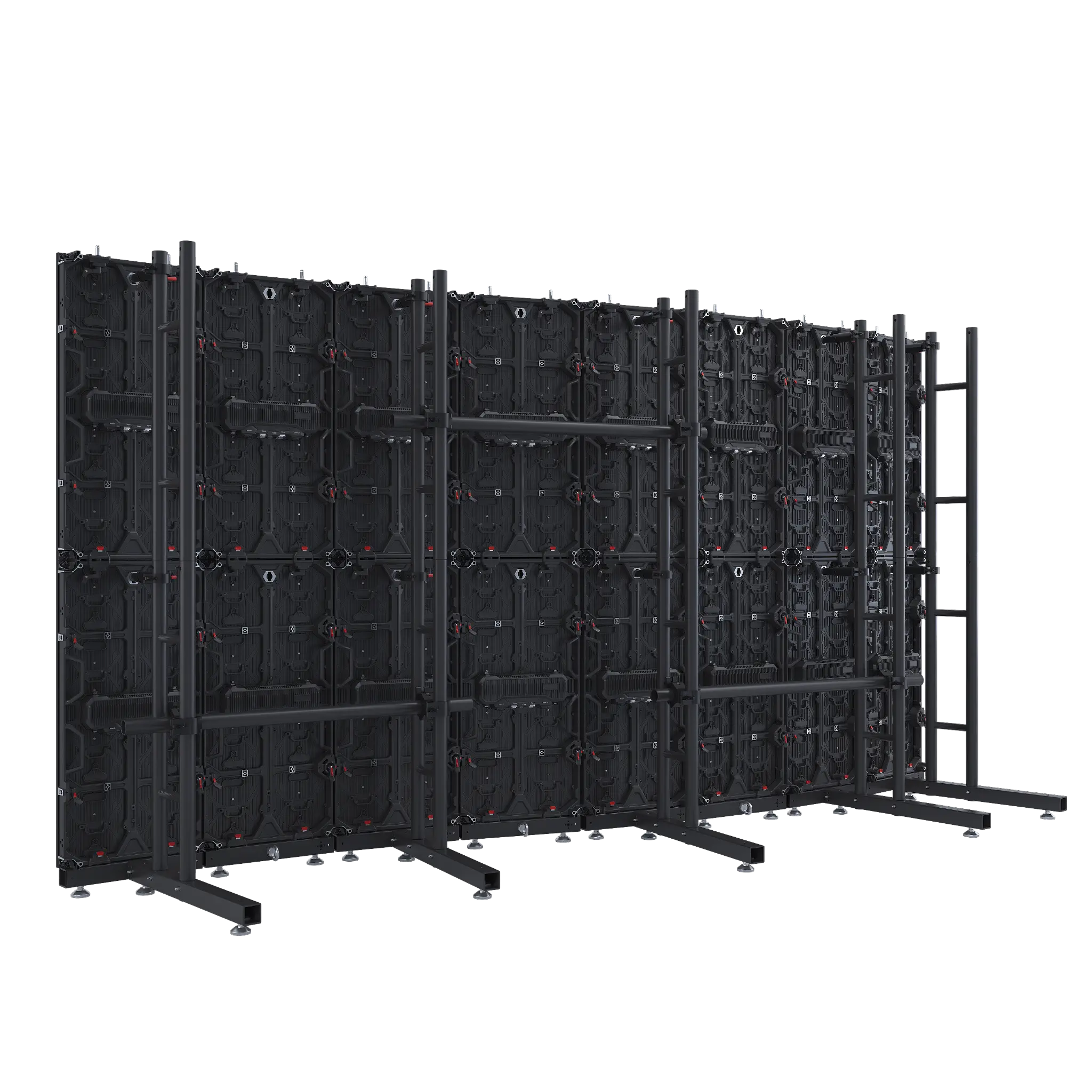

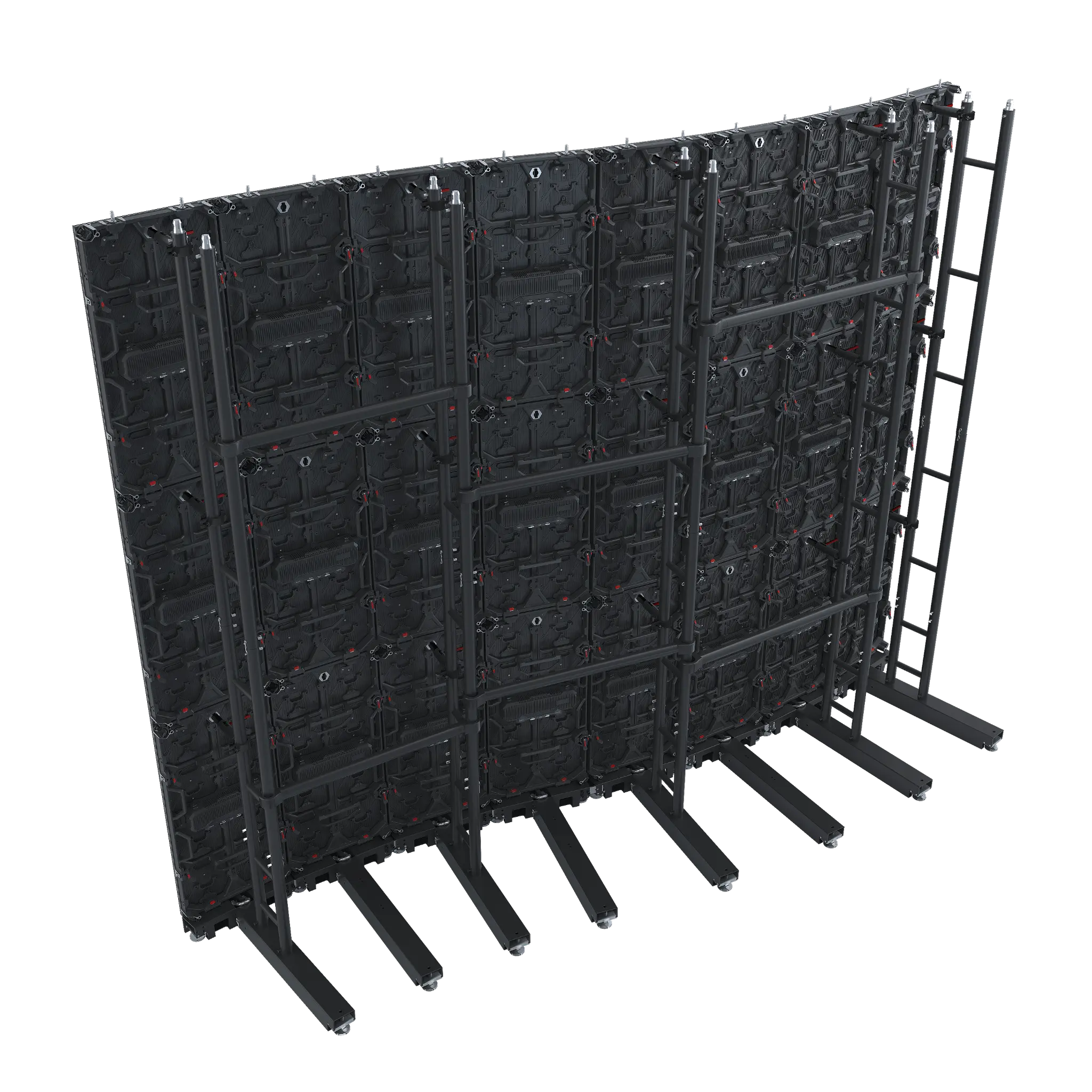

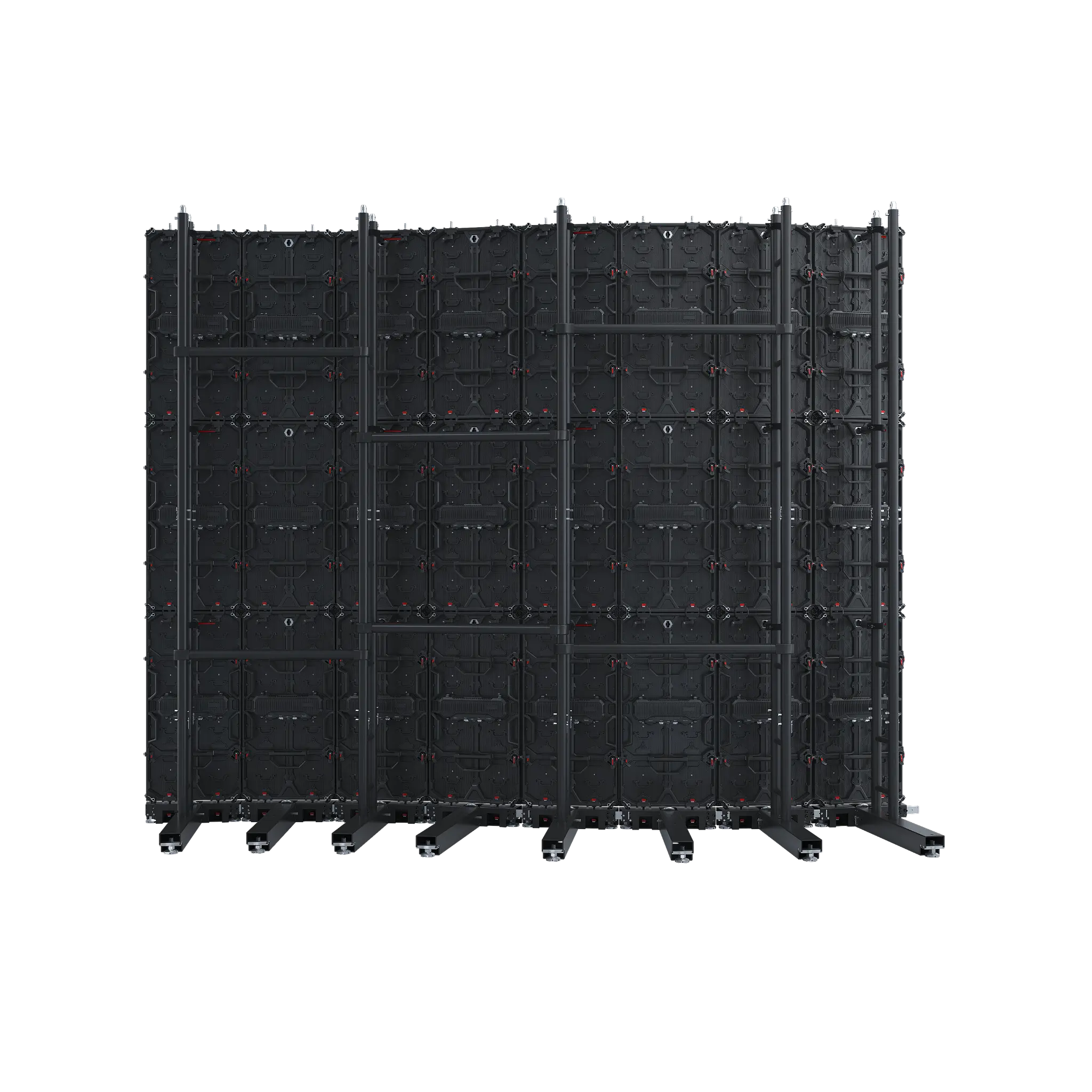

| Installation | Stacking / Hanging |
| Certificate | CE / FCC / ETL |
Specifications are for reference only and subject to change without notice.
REQUEST THE MANUAL
Enter your name and email and we'll send the Gladiator Indoor Series manual directly to your inbox.
READY TO CONFIGURE YOUR GLADIATOR INDOOR WALL?
Our team will help you design the perfect touring or fixed indoor LED solution.
